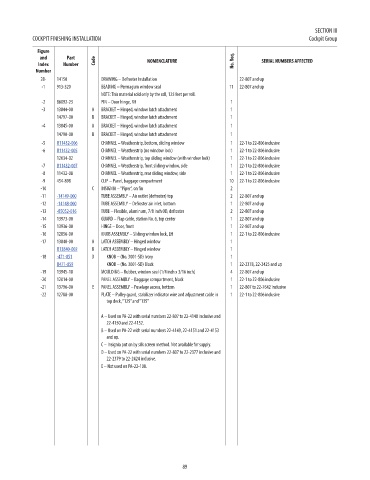

SECTION III
            COCKPIT FINISHING INSTALLATION                                                             Cockpit Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                No. Req.  SERIAL NUMBERS AFFECTED                   PRICE
             Number
              28-   14150         DRAWING – Defroster Installation              22-807 and up                                     NM!
               -1   913-320       BEADING – Permagum window seal             11  22-807 and up                                    NM!
                                  NOTE: This material sold only by the roll, 125 feet per roll.
               -2   86092-23      PIN – Door hinge, RH                       1                                                    NM!
               -3   13844-00   A  BRACKET – Hinged, window latch attachment  1                                                    NM!
                    14797-00   B  BRACKET – Hinged, window latch attachment  1                                                    NM!
               -4   13845-00   A  BRACKET – Hinged, window latch attachment  1                                                    NM!
                    14790-00   B  BRACKET – Hinged, window latch attachment  1                                                    NM!
               -5   U11432-006    CHANNEL – Weatherstrip, bottom, sliding window  1  22-1 to 22-806 inclusive                     66.98
               -6   U11432-005    CHANNEL – Weatherstrip (no window lock)    1  22-1 to 22-806 inclusive                          60.02
                    12634-02      CHANNEL – Weatherstrip, top sliding window (with window lock)  1  22-1 to 22-806 inclusive      NM!
               -7   U11432-007    CHANNEL – Weatherstrip, front sliding window, side  1  22-1 to 22-806 inclusive                 58.02
               -8   11432-08      CHANNEL – Weatherstrip, rear sliding window, side  1  22-1 to 22-806 inclusive                  NM!
               -9   454-898       CLIP – Panel, baggage compartment          10  22-1 to 22-806 inclusive                         NM!
              -10              C  INSIGNIA – “Piper”, on fin                 2
              -11   -14149-000    TUBE ASSEMBLY – Air outlet (defroster) top  2  22-807 and up                                    75.25
              -12   -14148-000    TUBE ASSEMBLY – Defroster air inlet, bottom  1  22-807 and up                                   313.62
              -13   -85052-016    TUBE – Flexible, aluminum, 7/8 inch OD, defroster  2  22-807 and up                             90.44
              -14   13973-00      GUARD – Flap cable, station No. 6, top center  1  22-807 and up                                 NM!
              -15   13936-00      HINGE – Door, front                        1  22-807 and up                                     NM!
              -16   12856-00      KNOB ASSEMBLY – Sliding window lock, LH    1  22-1 to 22-806 inclusive                          NM!
              -17   13840-00   A  LATCH ASSEMBLY – Hinged window             1                                                    NM!
                    U13840-002  B  LATCH ASSEMBLY – Hinged window            1                                                    112.38
              -18   -471-051   D    KNOB – (No. 3001-SD) Ivory               1                                                    2.19
                    U471-059        KNOB – (No. 3001-SD) Black               1  22-2378, 22-2425 and up                           4.13
              -19   13945-18      MOULDING – Rubber, window seal (1/4 inch x 3/16 inch)  4  22-807 and up                         NM!
              -20   12014-00      PANEL ASSEMBLY – Baggage compartment, black  1  22-1 to 22-806 inclusive                        NM!
              -21   13796-00   E  PANEL ASSEMBLY – Fuselage access, bottom   1  22-807 to 22-7642 inclusive                       NM!
              -22   12788-00      PLATE – Pulley guard, stabilizer indicator wire and adjustment cable in   1  22-1 to 22-806 inclusive  NM!
                                    top deck, “125” and “135”

                                  A – Used on PA-22 with serial numbers 22-807 to 22-4148 inclusive and
                                    22-4150 and 22-4152.
                                  B – Used on PA-22 with serial numbers 22-4149, 22-4151 and 22-4153
                                    and up.
                                  C – Insignia put on by silk screen method. Not available for supply.
                                  D – Used on PA-22 with serial numbers 22-807 to 22-2377 inclusive and
                                    22-2379 to 22-2424 inclusive.
                                  E – Not used on PA-22-108.



















                                                             89
