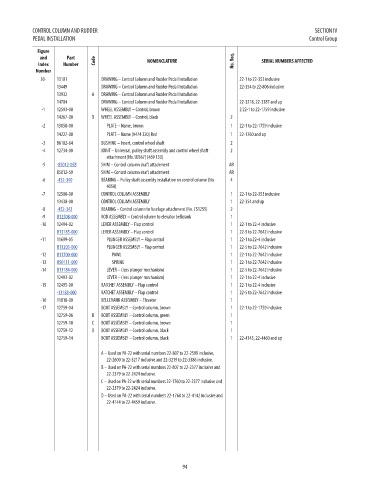

Page 106 - Piper PA-22 Tri-Pacer Interactive Digital Parts Catalog

CONTROL COLUMN AND RUDDER SECTION IV
PEDAL INSTALLATION Control Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
30- 13101 DRAWING – Control Column and Rudder Pedal Installation 22-1 to 22-353 inclusive NM!
13449 DRAWING – Control Column and Rudder Pedal Installation 22-354 to 22-806 inclusive NM!
13932 A DRAWING – Control Column and Rudder Pedal Installation NM!
14704 DRAWING – Control Column and Rudder Pedal Installation 22-3218, 22-3387 and up NM!
-1 12593-00 WHEEL ASSEMBLY – Control, brown 2 22-1 to 22-1759 inclusive NM!
14267-00 D WHEEL ASSEMBLY – Control, black 2 NM!
-2 13058-00 PLATE – Name, brown 1 22-1 to 22-1759 inclusive NM!
14227-00 PLATE – Name (#474 320) Red 1 22-1760 and up NM!
-3 86102-64 BUSHING – Insert, control wheel shaft 2 NM!
-4 12734-00 JOINT – Universal, pulley shaft assembly and control wheel shaft 2 NM!
attachment (No. UJ367) (469 130)
-5 -85012-058 SHIM – Control column shaft attachment AR 18.65
85012-59 SHIM – Control column shaft attachment AR NM!
-6 -452-340 BEARING – Pulley shaft assembly installation on control column (No. 4 20
4050)
-7 12500-00 CONTROL COLUMN ASSEMBLY 1 22-1 to 22-353 inclusive NM!
13438-00 CONTROL COLUMN ASSEMBLY 1 22-354 and up NM!
-8 -452-342 BEARING – Control column to fuselage attachment (No. CS1255) 2 10
-9 U12508-000 ROD ASSEMBLY – Control column to elevator bellcrank 1 516.8
-10 12494-02 LEVER ASSEMBLY – Flap control 1 22-1 to 22-4 inclusive NM!
U13185-000 LEVER ASSEMBLY – Flap control 1 22-5 to 22-7642 inclusive 448.73
-11 11699-05 PLUNGER ASSEMBLY – Flap control 1 22-1 to.22-4 inclusive NM!
U13203-000 PLUNGER ASSEMBLY – Flap control 1 22-5 to 22-7642 inclusive 172.06
-12 U11700-000 PAWL 1 22-1 to 22-7642 inclusive 26.17
-13 U50111-000 SPRING 1 22-1 to 22-7642 inclusive 3.83
-14 U13184-000 LEVER – (less plunger mechanism) 1 22-5 to 22-7642 inclusive 334.33
12493-02 LEVER – (less plunger mechanism) 1 22-1 to 22-4 inclusive NM!
-15 12495-00 RATCHET ASSEMBLY – Flap control 1 22-1 to 22-4 inclusive NM!
-13183-000 RATCHET ASSEMBLY – Flap control 1 22-5 to 22-7642 inclusive 90
-16 11818-00 BELLCRANK ASSEMBLY – Elevator 1 NM!
-17 12759-04 BOOT ASSEMBLY – Control column, brown 1 22-1 to 22-1759 inclusive NM!
12759-06 B BOOT ASSEMBLY – Control column, green 1 NM!
12759-10 C BOOT ASSEMBLY – Control column, brown 1 NM!
12759-12 D BOOT ASSEMBLY – Control column, black 1 NM!
12759-14 BOOT ASSEMBLY – Control column, black 1 22-4143, 22-4460 and up NM!

A – Used on PA-22 with serial numbers 22-807 to 22-2599 inclusive,
22-2600 to 22-3217 inclusive and 22-3219 to 22-3386 inclusive.
B – Used on PA-22 with serial numbers 22-807 to 22-2377 inclusive and
22-2379 to 22-2424 inclusive.
C – Used on PA-22 with serial numbers 22-1760 to 22-2377 inclusive and
22-2379 to 22-2424 inclusive.
D – Used on PA-22 with serial numbers 22-1760 to 22-4142 inclusive and
22-4144 to 22-4459 inclusive.

94
