STABILIZER ADJUSTMENT                                                                        SECTION IV
            CRANK INSTALLATION                                                                         Control Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                No. Req.  SERIAL NUMBERS AFFECTED                   PRICE
             Number
              31-   12988         DRAWING – Stabilizer Adjustment Crank Installation                                              NM!
               -1   U12105-000    PIN – Stabilizer adjustment crank          1                                                    45.01
               -2   -81761-004    PIN – Stabilizer adjustment crank pulley locking  1                                             12.4
               -3   -81761-011    PIN – Stabilizer adjustment crank locking  1                                                    10.08
               -4   U85012-018    WASHER – Stabilizer crank control pulley bracket attachment  1                                  14.43
               -5   12987-02      GUARD – Stabilizer adjustment crank pulley  1                                                   NM!
               -6   U12983-000    PULLEY – Stabilizer adjustment crank       1                                                    69.18
               -7   41121-03      INDICATOR ASSEMBLY – Stabilizer            1                                                    NM!
               -8   U42891-000    SPRING – Stabilizer indicator wire         1                                                    7.53
               -9   U41151-000    SPRING – Stabilizer crank escutcheon plate  1                                                   9.64
              -10   12103-00      PLATE – Support, stabilizer indicator      1                                                    NM!
              -11   U12102-000    PLATE – Cover, stabilizer indicator        1                                                    162.66
              -12   U41101-000    PLATE – Stabilizer crank escutcheon        1                                                    35.56
              -13   13448-00      CRANK ASSEMBLY – Stabilizer adjustment     1  22-354 and up                                     NM!
                    U41111-000    CRANK ASSEMBLY – Stabilizer adjustment     1  22-1 to 22-353 inclusive                          126.81
              -14   U80012-004    BUSHING                                    1                                                    7.45
              -15   U80122-018    WASHER                                     1                                                    2.16
              -16   U80421-000    PULLEY – 1-3/4 inch                        1                                                    12.37
              -17   U11692-005    BRACKET – Stabilizer adjustment cable tension pulley and spring   1                             18.39
                                    attachment
              -18   MS20392-1C23  PIN                                        1                                                    0.6
              -19   U81411-002    SPRING – Tension, stabilizer adjustment    1                                                    40.44
              -20   U80002-025    CLAMP – Tension spring attachment          1                                                    24.81



                                                2
                                   1            3
                                                                      7
                                   4
                                                              8
                                   5
                                                         14

                                                               16
                                   6

                                                        15                              20
                                                            18     19
                                                           17
                                   9

                                   10


                                  11

                                   12

                                  13

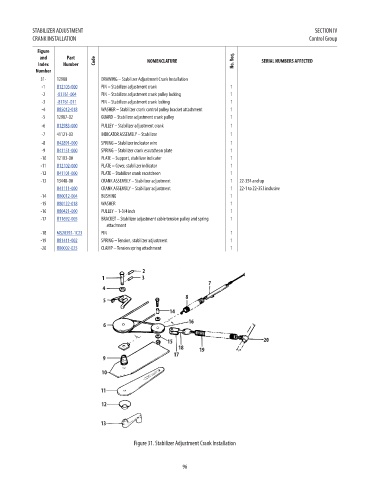

                                             Figure 31. Stabilizer Adjustment Crank Installation
