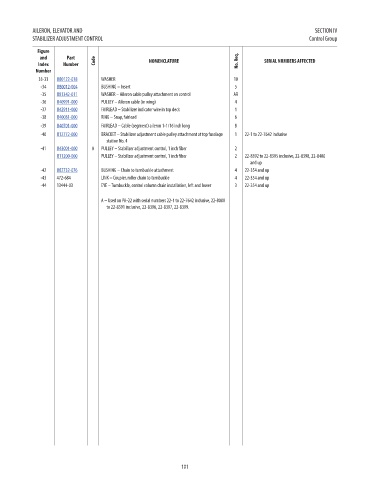

AILERON, ELEVATOR AND                                                                        SECTION IV
            STABILIZER ADJUSTMENT CONTROL                                                              Control Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                  No. Req.  SERIAL NUMBERS AFFECTED                 PRICE
             Number
              33-33  U80122-018   WASHER                                      10                                                  2.16
              -34   U80012-004    BUSHING – Insert                             5                                                  7.45
              -35   U81342-011    WASHER – Aileron cable pulley attachment on control  AR                                         7.06
              -36   U40991-000    PULLEY – Aileron cable (in wing)             4                                                  18.31
              -37   U42911-000    FAIRLEAD – Stabilizer indicator wire in top deck  1                                             13.29
              -38   U40081-000    RING – Snap, fairlead                        6                                                  0.49
              -39   U40701-000    FAIRLEAD – Cable (segment) aileron 1-1/16 inch long  8                                          1.3
              -40   U12772-000    BRACKET – Stabilizer adjustment cable pulley attachment at top fuselage   1  22-1 to 22-7642 inclusive  28.33
                                    station No. 4
              -41   U43001-000  A  PULLEY – Stabilizer adjustment control, 1 inch fiber  2                                        18.18
                    U11200-000    PULLEY – Stabilizer adjustment control, 1 inch fiber  2  22-8392 to 22-8395 inclusive, 22-8398, 22-8400   15.2
                                                                                    and up
              -42   U82732-076    BUSHING – Chain to turnbuckle attachment     4  22-354 and up                                   9.12
              -43   472-684       LINK – Coupler, roller chain to turnbuckle   4  22-354 and up                                   NM!
              -44   13444-03      EYE – Turnbuckle, control column chain installation, left and lower  3  22-354 and up           NM!

                                  A – Used on PA-22 with serial numbers 22-1 to 22-7642 inclusive, 22-8000
                                    to 22-8391 inclusive, 22-8396, 22-8397, 22-8399.
