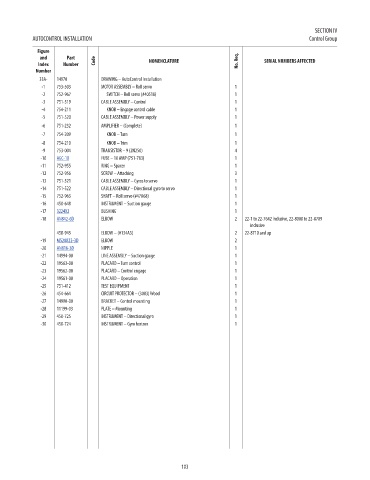

Page 115 - Piper PA-22 Tri-Pacer Interactive Digital Parts Catalog

SECTION IV
AUTOCONTROL INSTALLATION Control Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
33A- 14970 DRAWING – AutoControl Installation NM!
-1 753-503 MOTOR ASSEMBLY – Roll servo 1 NM!
-2 752-967 SWITCH – Roll servo (#40518) 1 NM!
-3 751-519 CABLE ASSEMBLY – Control 1 NM!
-4 754-211 KNOB – Engage control cable 1 NM!
-5 751-520 CABLE ASSEMBLY – Power supply 1 NM!
-6 751-232 AMPLIFIER – (Complete) 1 NM!
-7 754-209 KNOB – Turn 1 NM!
-8 754-210 KNOB – Trim 1 NM!
-9 753-004 TRANSISTOR – 9 (2N250) 4 NM!
-10 AGC-10 FUSE – 10 AMP (751-783) 1 0.9
-11 752-955 RING – Spacer 1 NM!
-12 752-956 SCREW – Attaching 3 NM!
-13 751-521 CABLE ASSEMBLY – Gyros to servo 1 NM!
-14 751-522 CABLE ASSEMBLY – Directional gyro to servo 1 NM!
-15 752-963 SHAFT – Roll servo (#47A68) 1 NM!
-16 450-648 INSTRUMENT – Suction gauge 1 NM!
-17 3224X2 BUSHING 1 2.5
-18 AN842-6D ELBOW 2 22-1 to 22-7642 inclusive, 22-8000 to 22-8709 21
inclusive
458-945 ELBOW – (#134A3) 2 22-8710 and up NM!
-19 MS20822-3D ELBOW 2 18.78
-20 AN816-3D NIPPLE 1 2.72
-21 14994-00 LINE ASSEMBLY – Suction gauge 1 NM!
-22 19563-00 PLACARD – Turn control 1 NM!
-23 19562-00 PLACARD – Control engage 1 NM!
-24 19561-00 PLACARD – Operation 1 NM!
-25 751-412 TEST EQUIPMENT 1 NM!
-26 454-664 CIRCUIT PROTECTOR – (3003) Wood 1 NM!
-27 14990-00 BRACKET – Control mounting 1 NM!
-28 11199-03 PLATE – Mounting 1 NM!
-29 450-725 INSTRUMENT – Directional gyro 1 NM!
-30 450-724 INSTRUMENT – Gyro horizon 1 NM!

103
