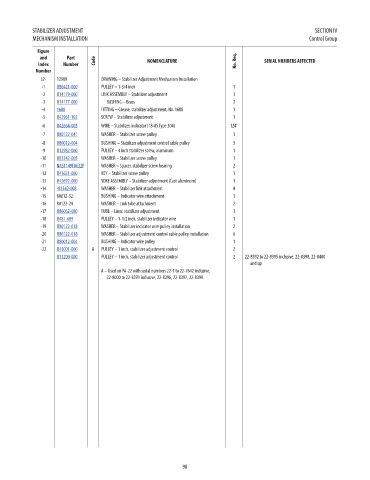

STABILIZER ADJUSTMENT                                                                        SECTION IV
            MECHANISM INSTALLATION                                                                     Control Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                 No. Req.  SERIAL NUMBERS AFFECTED                  PRICE
             Number
              32-   12989         DRAWING – Stabilizer Adjustment Mechanism Installation                                          NM!
               -1   U80421-000    PULLEY – 1-3/4 inch                         1                                                   12.37
               -2   U14179-000    LINK ASSEMBLY – Stabilizer adjustment       1                                                   299.87
               -3   U14177-000      BUSHING – Brass                           2                                                   22.82
               -4   1688          FITTING – Grease, stabilizer adjustment, No. 1688  1                                            2.26
               -5   U42961-102    SCREW – Stabilizer adjustment               1                                                   112.38
               -6   U42664-003    WIRE – Stabilizer, indicator (18-8S Type 304)  124"                                             26.19
               -7   U80122-041    WASHER – Stabilizer screw pulley            1                                                   13.35
               -8   U80012-004    BUSHING – Stabilizer adjustment control cable pulley  3                                         7.45
               -9   U12982-000    PULLEY – 4 inch stabilizer screw, aluminum  1                                                   140.67
              -10   U81342-005    WASHER – Stabilizer screw pulley            1                                                   9.3
              -11   NAS1149F0632P  WASHER – Spacer, stabilizer screw bearing  2                                                   0.06
              -12   U41631-000    KEY – Stabilizer screw pulley               1                                                   16.1
              -13   U42692-000    YOKE ASSEMBLY – Stabilizer adjustment (Cast aluminum)  1                                        289.01
              -14   -81342-008    WASHER – Stabilizer link attachment         4                                                   5.21
              -15   80012-32      BUSHING – Indicator wire attachment         1                                                   NM!
              -16   80122-24      WASHER – Link tube attachment               2                                                   NM!
              -17   U86062-080    TUBE – Liner, stabilizer adjustment         1                                                   129.57
              -18   U481-609      PULLEY – 1-1/2 inch, stabilizer indicator wire  1                                               11.9
              -19   U80122-018    WASHER – Stabilizer indicator wire pulley installation  2                                       2.16
              -20   U80122-018    WASHER – Stabilizer adjustment control cable pulley installation  6                             2.16
              -21   U80012-004    BUSHING – Indicator wire pulley             1                                                   7.45
              -22   U43001-000  A  PULLEY – 1 inch, stabilizer adjustment control  2                                              18.18
                    U11200-000    PULLEY – 1 inch, stabilizer adjustment control  2  22-8392 to 22-8395 inclusive, 22-8398, 22-8400   15.2
                                                                                    and up
                                  A – Used on PA-22 with serial numbers 22-1 to 22-7642 inclusive,
                                    22-8000 to 22-8391 inclusive, 22-8396, 22-8397, 22-8399.
