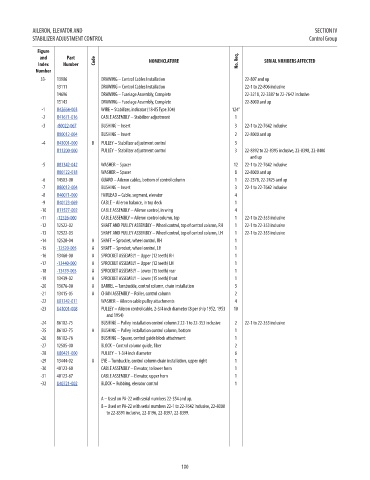

AILERON, ELEVATOR AND SECTION IV
STABILIZER ADJUSTMENT CONTROL Control Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
33- 13906 DRAWING – Control Cables Installation 22-807 and up NM!
13111 DRAWING – Control Cables Installation 22-1 to 22-806 inclusive NM!
14696 DRAWING – Fuselage Assembly, Complete 22-3218, 22-3387 to 22-7642 inclusive NM!
15143 DRAWING – Fuselage Assembly, Complete 22-8000 and up NM!
-1 U42664-003 WIRE – Stabilizer, indicator (18-8S Type 304) 124” 26.19
-2 U41671-016 CABLE ASSEMBLY – Stabilizer adjustment 1 343.11
-3 -80022-067 BUSHING – Insert 3 22-1 to 22-7642 inclusive 10.64
U80012-004 BUSHING – Insert 2 22-8000 and up 7.45
-4 U43001-000 B PULLEY – Stabilizer adjustment control 3 18.18
U11200-000 PULLEY – Stabilizer adjustment control 3 22-8392 to 22-8395 inclusive, 22-8398, 22-8400 15.2
and up
-5 U81342-042 WASHER – Spacer 12 22-1 to 22-7642 inclusive 3.14
U80122-018 WASHER – Spacer 8 22-8000 and up 2.16
-6 14503-00 GUARD – Aileron cables, bottom of control column 1 22-2378, 22-2425 and up NM!
-7 U80012-004 BUSHING – Insert 3 22-1 to 22-7642 inclusive 7.45
-8 U40071-000 FAIRLEAD – Cable, segment, elevator 4 1.32
-9 U40123-069 CABLE – Aileron balance, in top deck 1 162.74
-10 U11527-002 CABLE ASSEMBLY – Aileron control, in wing 4 157.82
-11 -12526-000 CABLE ASSEMBLY – Aileron control column, top 1 22-1 to 22-353 inclusive 263.43
-12 12522-02 SHAFT AND PULLEY ASSEMBLY – Wheel control, top of control column, RH 1 22-1 to 22-353 inclusive NM!
-13 12522-03 SHAFT AND PULLEY ASSEMBLY – Wheel control, top of control column, LH 1 22-1 to 22-353 inclusive NM!
-14 12520-04 A SHAFT – Sprocket, wheel control, RH 1 NM!
-15 -12520-005 A SHAFT – Sprocket, wheel control, LH 1 90.44
-16 13460-00 A SPROCKET ASSEMBLY – Upper (12 teeth) RH 1 NM!
-17 -13440-000 A SPROCKET ASSEMBLY – Upper (12 teeth) LH 1 87.75
-18 -13439-003 A SPROCKET ASSEMBLY – Lower (15 teeth) rear 1 123.64
-19 13439-02 A SPROCKET ASSEMBLY – Lower (15 teeth) front 1 NM!
-20 13676-00 A BARREL – Turnbuckle, control column, chain installation 3 NM!
-21 13415-05 A CHAIN ASSEMBLY – Roller, control column 2 NM!
-22 U81342-011 WASHER – Aileron cable pulley attachments 4 7.06
-23 U41001-008 PULLEY – Aileron control cable, 2-3/4 inch diameter (8 per ship 1952, 1953 10 63.56
and 1954)
-24 86102-75 BUSHING – Pulley installation control column 2 22-1 to 22-353 inclusive 2 22-1 to 22-353 inclusive NM!
-25 86102-75 A BUSHING – Pulley installation control column, bottom 1 NM!
-26 86102-76 BUSHING – Spacer, control guide block attachment 1 NM!
-27 12505-00 BLOCK – Control column guide, fiber 2 NM!
-28 U80421-000 PULLEY – 1-3/4 inch diameter 6 12.37
-29 13444-02 A EYE – Turnbuckle, control column chain installation, upper right 1 NM!
-30 40123-60 CABLE ASSEMBLY – Elevator, to lower horn 1 NM!
-31 40123-67 CABLE ASSEMBLY – Elevator, upper horn 1 NM!
-32 U40721-002 BLOCK – Rubbing, elevator control 1 19.3

A – Used on PA-22 with serial numbers 22-354 and up.
B – Used on PA-22 with serial numbers 22-1 to 22-7642 inclusive, 22-8000
to 22-8391 inclusive, 22-8196, 22-8397, 22-8399.

100
