P. 107

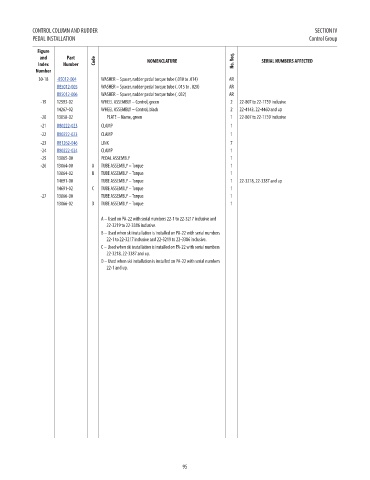

CONTROL COLUMN AND RUDDER                                                                    SECTION IV
            PEDAL INSTALLATION                                                                         Control Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                No. Req.  SERIAL NUMBERS AFFECTED                   PRICE
             Number
              30-18  -85012-004   WASHER – Spacer, rudder pedal torque tube (.010 to .014)  AR                                    2.38
                    U85012-005    WASHER – Spacer, rudder pedal torque tube (. 015 to . 020)  AR                                  2.49
                    U85012-006    WASHER – Spacer, rudder pedal torque tube (. 032)  AR                                           3.33
              -19   12593-02      WHEEL ASSEMBLY – Control, green            2  22-807 to 22-1759 inclusive                       NM!
                    14267-02      WHEEL ASSEMBLY – Control, black            2  22-4143, 22-4460 and up                           NM!
              -20   13058-02        PLATE – Name, green                      1  22-807 to 22-1759 inclusive                       NM!
              -21   U80222-023    CLAMP                                      1                                                    36.74
              -22   U80222-023    CLAMP                                      1                                                    36.74
              -23   U81262-046    LINK                                       7                                                    9.93
              -24   U80222-024    CLAMP                                      1                                                    34.36
              -25   13065-00      PEDAL ASSEMBLY                             1                                                    NM!
              -26   13064-00   A  TUBE ASSEMBLY – Torque                     1                                                    NM!
                    13064-02   B  TUBE ASSEMBLY – Torque                     1                                                    NM!
                    14691-00      TUBE ASSEMBLY – Torque                     1  22-3218, 22-3387 and up                           NM!
                    14691-02   C  TUBE ASSEMBLY – Torque                     1                                                    NM!
              -27   13066-00      TUBE ASSEMBLY – Torque                     1                                                    NM!
                    13066-02   D  TUBE ASSEMBLY – Torque                     1                                                    NM!

                                  A – Used on PA-22 with serial numbers 22-1 to 22-3217 inclusive and
                                    22-3219 to 22-3386 inclusive.
                                  B – Used when ski installation is installed on PA-22 with serial numbers
                                    22-1 to 22-3217 inclusive and 22-3219 to 22-3386 inclusive.
                                  C – Used when ski installation is installed on PA-22 with serial numbers
                                    22-3218, 22-3387 and up.
                                  D – Used when ski installation is installed on PA-22 with serial numbers
                                    22-1 and up.








































                                                             95
