P. 104

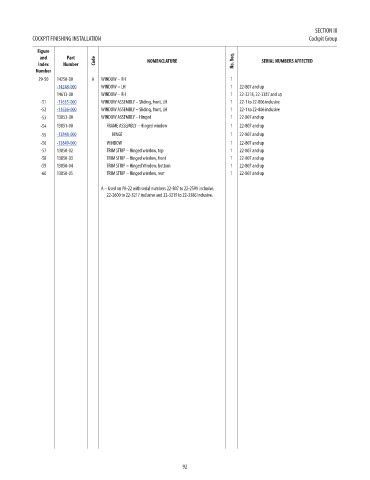

SECTION III
            COCKPIT FINISHING INSTALLATION                                                             Cockpit Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                No. Req.  SERIAL NUMBERS AFFECTED                   PRICE
             Number
              29-50  14250-00  A  WINDOW – RH                                1                                                    NM!
                    -14248-000    WINDOW – LH                                1  22-807 and up                                     62.37
                    14613-00      WINDOW – RH                                1  22-3218, 22-3387 and up                           NM!
              -51   -11635-000    WINDOW ASSEMBLY – Sliding, front, LH       1  22-1 to 22-806 inclusive                          57.92
              -52   -11636-000    WINDOW ASSEMBLY – Sliding, front, LH       1  22-1 to 22-806 inclusive                          57.92
              -53   13853-00      WINDOW ASSEMBLY – Hinged                   1  22-807 and up                                     NM!
              -54   13851-00        FRAME ASSEMBLY – Hinged window           1  22-807 and up                                     NM!
              -55   -13848-000        HINGE                                  1  22-807 and up                                     48.28
              -56   -13849-000      WINDOW                                   1  22-807 and up                                     38.61
              -57   13850-02        TRIM STRIP – Hinged window, top          1  22-807 and up                                     NM!
              -58   13850-03        TRIM STRIP – Hinged window, front        1  22-807 and up                                     NM!
              -59   13850-04        TRIM STRIP – Hinged Window, bottom       1  22-807 and up                                     NM!
              -60   13850-05        TRIM STRIP – Hinged window, rear         1  22-807 and up                                     NM!

                                  A – Used on PA-22 with serial numbers 22-807 to 22-2599 inclusive,
                                    22-2600 to 22-3217 inclusive and 22-3219 to 22-3386 inclusive.






















































                                                             92
