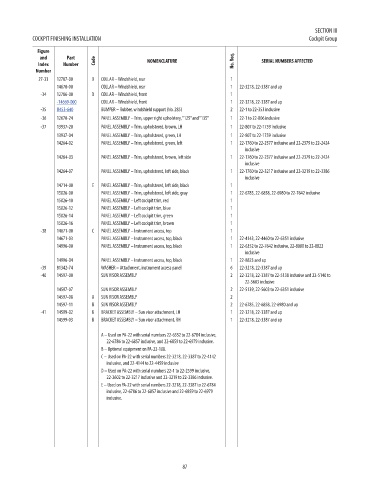

P. 99

SECTION III
            COCKPIT FINISHING INSTALLATION                                                             Cockpit Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                No. Req.  SERIAL NUMBERS AFFECTED                   PRICE
             Number
              27-33  12787-00  D  COLLAR – Windshield, rear                  1                                                    NM!
                    14670-00      COLLAR – Windshield, rear                  1  22-3218, 22-3387 and up                           NM!
              -34   12786-00   D  COLLAR – Windshield, front                 1                                                    NM!
                    -14669-000    COLLAR – Windshield, front                 1  22-3218, 22-3387 and up                           137.7
              -35   U453-640      BUMPER – Rubber, windshield support (No. 285)  2  22-1 to 22-353 inclusive                      4.4
              -36   12670-24      PANEL ASSEMBLY – Trim, upper right upholstery, “125” and “135”  1  22-1 to 22-806 inclusive     NM!
              -37   13937-20      PANEL ASSEMBLY – Trim, upholstered, brown, LH  1  22-807 to 22-1759 inclusive                   NM!
                    13937-04      PANEL ASSEMBLY – Trim, upholstered, green, LH  1  22-807 to 22-1759 inclusive                   NM!
                    14264-02      PANEL ASSEMBLY – Trim, upholstered, green, left  1  22-1760 to 22-2377 inclusive and 22-2379 to 22-2424   NM!
                                                                                  inclusive
                    14264-03      PANEL ASSEMBLY – Trim, upholstered, brown, left side  1  22-1760 to 22-2377 inclusive and 22-2379 to 22-2424   NM!
                                                                                  inclusive
                    14264-07      PANEL ASSEMBLY – Trim, upholstered, left side, black  1  22-1760 to 22-3217 inclusive and 22-3219 to 22-3386   NM!
                                                                                  inclusive
                    14714-00   E  PANEL ASSEMBLY – Trim, upholstered, left side, black  1                                         NM!
                    15026-00      PANEL ASSEMBLY – Trim, upholstered, left side, gray  1  22-6785, 22-6858, 22-6980 to 22-7642 inclusive  NM!
                    15026-10      PANEL ASSEMBLY – Left cockpit trim, red    1                                                    NM!
                    15026-12      PANEL ASSEMBLY – Left cockpit trim, blue   1                                                    NM!
                    15026-14      PANEL ASSEMBLY – Left cockpit trim, green  1                                                    NM!
                    15026-16      PANEL ASSEMBLY – Left cockpit trim, brown  1                                                    NM!
              -38   14671-00   C  PANEL ASSEMBLY – Instrument access, top    1                                                    NM!
                    14671-03      PANEL ASSEMBLY – Instrument access, top, black  1  22-4143, 22-4460 to 22-6351 inclusive        NM!
                    14996-00      PANEL ASSEMBLY – Instrument access, top, black  1  22-6352 to 22-7642 inclusive, 22-8000 to 22-8822   NM!
                                                                                  inclusive
                    14996-04      PANEL ASSEMBLY – Instrument access, top, black  1  22-8823 and up                               NM!
              -39   81342-74      WASHER – Attachment, instrument access panel  6  22-3218, 22-3387 and up                        NM!
              -40   14597-00      SUN VISOR ASSEMBLY                         2  22-3218, 22-3387 to 22-5138 inclusive and 22-5140 to   NM!
                                                                                  22-5603 inclusive
                    14597-07      SUN VISOR ASSEMBLY                         2  22-5139, 22-5603 to 22-6351 inclusive             NM!
                    14597-08   A  SUN VISOR ASSEMBLY                         2                                                    NM!
                    14597-11   B  SUN VISOR ASSEMBLY                         2  22-6785, 22-6858, 22-6980 and up                  NM!
              -41   14599-02   B  BRACKET ASSEMBLY – Sun visor attachment, LH  1  22-3218, 22-3387 and up                         NM!
                    14599-03   B  BRACKET ASSEMBLY – Sun visor attachment, RH  1  22-3218, 22-3387 and up                         NM!
                                                                                                                                  NM!
                                  A – Used on PA-22 with serial numbers 22-6352 to 22-6784 inclusive,
                                    22-6786 to 22-6857 inclusive, and 22-6859 to 22-6979 inclusive.
                                  B – Optional equipment on PA-22-108.
                                  C – Used on PA-22 with serial numbers 22-3218, 22-3387 to 22-4142
                                    inclusive, and 22-4144 to 22-4459 inclusive
                                  D – Used on PA-22 with serial numbers 22-1 to 22-2599 inclusive,
                                    22-2602 to 22-3217 inclusive and 22-3219 to 22-3386 inclusive.
                                  E – Used on PA-22 with serial numbers 22-3218, 22-3387 to 22-6784
                                    inclusive, 22-6786 to 22-6857 inclusive and 22-6859 to 22-6979
                                    inclusive.













                                                             87
