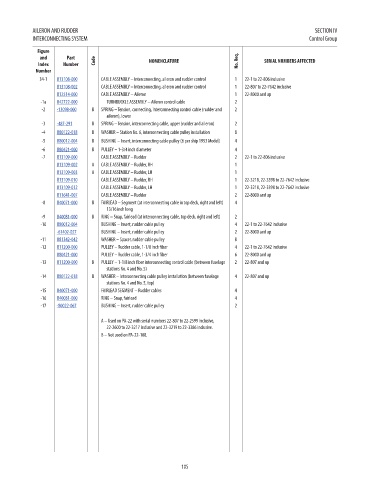

AILERON AND RUDDER                                                                           SECTION IV
            INTERCONNECTING SYSTEM                                                                     Control Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                  No. Req.  SERIAL NUMBERS AFFECTED                 PRICE
             Number
              34-1  U13108-000    CABLE ASSEMBLY – Interconnecting, aileron and rudder control  1  22-1 to 22-806 inclusive       526.07
                    U13108-002    CABLE ASSEMBLY – Interconnecting, aileron and rudder control  1  22-807 to 22-7642 inclusive    470.71
                    U12514-000    CABLE ASSEMBLY – Aileron                     1  22-8000 and up                                  543.89
              -1a   U42722-000      TURNBUCKLE ASSEMBLY – Aileron control cable  2                                                143.05
               -2   -13098-000  B  SPRING – Tension, connecting, interconnecting control cable (rudder and   2                    11
                                    aileron), lower
               -3   -487-291   B  SPRING – Tension, interconnecting cable, upper (rudder and aileron)  2                          33.2
               -4   U80122-018  B  WASHER – Station No. 6, interconnecting cable pulley installation  8                           2.16
               -5   U80012-004  B  BUSHING – Insert, interconnecting cable pulley (6 per ship 1953 Model)  4                      7.45
               -6   U80421-000  B  PULLEY – 1-3/4 inch diameter                4                                                  12.37
               -7   U13109-000    CABLE ASSEMBLY – Rudder                      2  22-1 to 22-806 inclusive                        310.36
                    U13109-002  A  CABLE ASSEMBLY – Rudder, RH                 1                                                  358.07
                    U13109-003  A  CABLE ASSEMBLY – Rudder, LH                 1                                                  310.45
                    U13109-010    CABLE ASSEMBLY – Rudder, RH                  1  22-3218, 22-3398 to 22-7642 inclusive           181.02
                    U13109-012    CABLE ASSEMBLY – Rudder, LH                  1  22-3218, 22-3398 to 22-7642 inclusive           181.02
                    U11641-007    CABLE ASSEMBLY – Rudder                      2  22-8000 and up                                  180.95
               -8   U40071-000  B  FAIRLEAD – Segment (at interconnecting cable in top deck, right and left)   4                  1.32
                                    13/16 inch long
               -9   U40081-000  B  RING – Snap, fairlead (at interconnecting cable, top deck, right and left)  2                  0.49
              -10   U80012-004    BUSHING – Insert, rudder cable pulley        4  22-1 to 22-7642 inclusive                       7.45
                    -61402-027    BUSHING – Insert, rudder cable pulley        2  22-8000 and up                                  14.88
              -11   U81342-042    WASHER – Spacer, rudder cable pulley         8                                                  3.14
              -12   U11200-000    PULLEY – Rudder cable, 1-1/8 inch fiber      4  22-1 to 22-7642 inclusive                       15.2
                    U80421-000    PULLEY – Rudder cable, 1-3/4 inch fiber      6  22-8000 and up                                  12.37
              -13   U11200-000  B  PULLEY – 1-1/8 inch fiber interconnecting control cable (between fuselage   2  22-807 and up   15.2
                                    stations No. 4 and No. 5)
              -14   U80122-018  B  WASHER – Interconnecting cable pulley installation (between fuselage   4  22-807 and up        2.16
                                    stations No. 4 and No. 5, top)
              -15   U40071-000    FAIRLEAD SEGMENT – Rudder cables             4                                                  1.32
              -16   U40081-000    RING – Snap, fairlead                        4                                                  0.49
              -17   -80022-067    BUSHING – Insert, rudder cable pulley        2                                                  10.64


                                  A – Used on PA-22 with serial numbers 22-807 to 22-2599 inclusive,
                                    22-2600 to 22-3217 inclusive and 22-3219 to 22-3386 inclusive.
                                  B – Not used on PA-22-108.
