P. 122

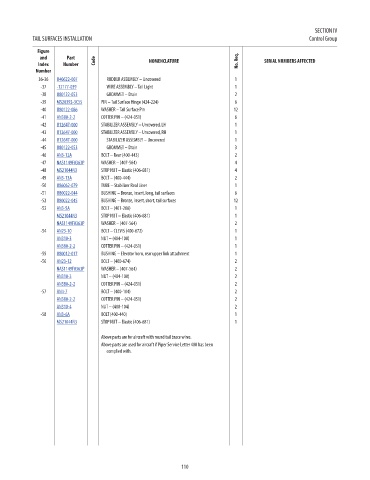

SECTION IV
            TAIL SURFACES INSTALLATION                                                                 Control Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                  No. Req.  SERIAL NUMBERS AFFECTED                 PRICE
             Number
              36-36  U40622-007     RUDDER ASSEMBLY – Uncovered                1                                                  918.25
              -37   -12177-039      WIRE ASSEMBLY – Tail Light                 1                                                  13.87
              -38   U80122-053      GROMMET – Drain                            2                                                  4.09
              -39   MS20392-3C55  PIN – Tail Surface Hinge (424-224)           6                                                  1.08
              -40   U80122-086    WASHER – Tail Surface Pin                   12                                                  2.46
              -41   AN380-2-2     COTTER PIN – (424-051)                       6                                                  0.04
              -42   U12647-000    STABILIZER ASSEMBLY – Uncovered, LH          1                                                  929.38
              -43   U12647-000    STABILIZER ASSEMBLY – Uncovered, RH          1                                                  929.38
              -44   U12647-000      STABILIZER ASSEMBLY – Uncovered            1                                                  929.38
              -45   U80122-053      GROMMET – Drain                            3                                                  4.09
              -46   AN3-12A       BOLT – Rear (400-443)                        2                                                  0.16
              -47   NAS1149F0363P  WASHER – (407-564)                          4                                                  0.04
              -48   MS21044N3     STOP NUT – Elastic (406-681)                 4                                                  0.24
              -49   AN3-13A       BOLT – (400-444)                             2                                                  0.3
              -50   U86062-079    TUBE – Stabilizer Real Liner                 1                                                  89.95
              -51   U80022-044    BUSHING – Bronze, insert, long, tail surfaces  6                                                1.26
              -52   U80022-045    BUSHING – Bronze, insert, short, tail surfaces  12                                              1.6
              -53   AN3-5A        BOLT – (401-266)                             1                                                  0.16
                    MS21044N3     STOP NUT – Elastic (406-681)                 1                                                  0.24
                    NAS1149F0363P  WASHER – (407-564)                          2                                                  0.04
              -54   AN23-10       BOLT – CLEVIS (400-672)                      1                                                  1.82
                    AN310-3       NUT – (404-100)                              1                                                  1.5
                    AN380-2-2     COTTER PIN – (424-051)                       1                                                  0.04
              -55   U80012-017    BUSHING – Elevator horn, rear upper link attachment  1                                          12.71
              -56   AN23-12       BOLT – (400-674)                             2                                                  1.3
                    NAS1149F0363P  WASHER – (407-564)                          2                                                  0.04
                    AN310-3       NUT – (404-100)                              2                                                  1.5
                    AN380-2-2     COTTER PIN – (424-051)                       2                                                  0.04
              -57   AN4-7         BOLT – (400-104)                             2                                                  0.58
                    AN380-2-2     COTTER PIN – (424-051)                       2                                                  0.04
                    AN310-4       NUT – (400-104)                              2                                                  1.6
              -58   AN3-6A        BOLT (400-440)                               1                                                  0.16
                    MS21044N3     STOP NUT – Elastic (406-681)                 1                                                  0.24

                                  Above parts are for aircraft with round tail brace wires.
                                  Above parts are used for aircraft if Piper Service Letter 400 has been
                                    complied with.
