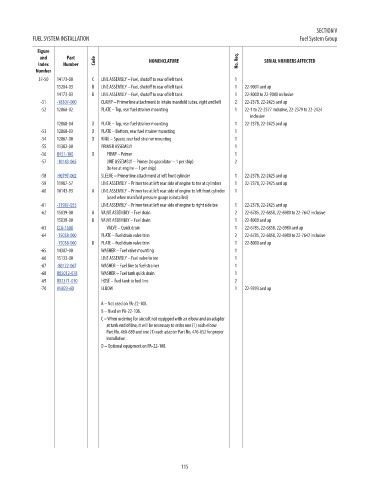

SECTION V
FUEL SYSTEM INSTALLATION Fuel System Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
37-50 14173-00 C LINE ASSEMBLY – Fuel, shutoff to rear of left tank 1 NM!
15204-03 B LINE ASSEMBLY – Fuel, shutoff to rear of left tank 1 22-9001 and up NM!
14173-03 B LINE ASSEMBLY – Fuel, shutoff to rear of left tank 1 22-8000 to 22-9000 inclusive NM!
-51 -18307-000 CLAMP – Primer line attachment to intake manifold tubes, right and left 2 22-2378, 22-2425 and up 36.12
-52 12868-02 PLATE – Top, rear fuel strainer mounting 1 22-1 to 22-2377 inclusive, 22-2379 to 22-2424 NM!
inclusive
12868-04 D PLATE – Top, rear fuel strainer mounting 1 22-2378, 22-2425 and up NM!
-53 12868-03 D PLATE – Bottom, rear fuel strainer mounting 1 NM!
-54 12867-00 D RING – Spacer, rear fuel strainer mounting 1 NM!
-55 11382-00 PRIMER ASSEMBLY 1 NM!
-56 U451-100 D PUMP – Primer 1 419.22
-57 -10143-065 LINE ASSEMBLY – Primer (to gascolator – 1 per ship) 2 100.22
(to tee at engine – 1 per ship)
-58 -90797-002 SLEEVE – Primer line attachment at left front cylinder 1 22-2378, 22-2425 and up 2.29
-59 11987-57 LINE ASSEMBLY – Primer tee at left rear side of engine to tee at cylinders 1 22-2378, 22-2425 and up NM!
-60 10143-93 A LINE ASSEMBLY – Primer tee at left rear side of engine to left front cylinder 1 NM!
(used when manifold pressure gauge is installed)
-61 -11987-055 LINE ASSEMBLY – Primer tee at left rear side of engine to right side tee 1 22-2378, 22-2425 and up 55.96
-62 15039-00 A VALVE ASSEMBLY – Fuel drain 2 22-6785, 22-6858, 22-6980 to 22-7642 inclusive NM!
15039-00 B VALVE ASSEMBLY – Fuel drain 1 22-8000 and up NM!
-63 CCA-1600 VALVE – Quick drain 1 22-6785, 22-6858, 22-6980 and up 23.28
-64 -15038-000 PLATE – Fuel drain valve trim 2 22-6785, 22-6858, 22-6980 to 22-7642 inclusive 55.06
-15038-000 B PLATE – Fuel drain valve trim 1 22-8000 and up 55.06
-65 14307-00 WASHER – Fuel valve mounting 1 NM!
-66 15133-00 LINE ASSEMBLY – Fuel valve to tee 1 NM!
-67 -80122-067 WASHER – Fuel line to fuel strainer 1 7.63
-68 U85012-078 WASHER – Fuel tank quick drain 1 8.99
-69 U82371-010 HOSE – Fuel tank to fuel line 2 23.8
-70 AN823-6D ELBOW 1 22-9393 and up 26.2

A – Not used on PA-22-108.
B – Used on PA-22-108.
C – When ordering for aircraft not equipped with an elbow and an adapter
at tank end of line, it will be necessary to order one (1) each elbow
Part No. 460-689 and one (1) each adapter Part No. 476-652 for proper
installation.
D – Optional equipment on PA-22-108.

115
