P. 129

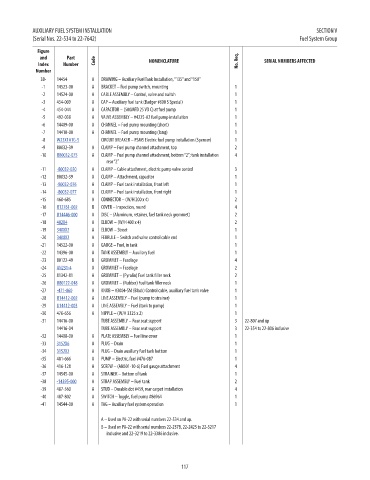

AUXILIARY FUEL SYSTEM INSTALLATION                                                            SECTION V
            (Serial Nos. 22-534 to 22-7642)                                                         Fuel System Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                  No. Req.  SERIAL NUMBERS AFFECTED                 PRICE
             Number
              38-   14454      A   DRAWING – Auxiliary Fuel Tank Installation, “135” and “150”                                    NM!
               -1   14523-00   A   BRACKET – Fuel pump switch, mounting        1                                                  NM!
               -2   14524-00   A   CABLE ASSEMBLY – Control, valve and switch  1                                                  NM!
               -3   454-009    A   CAP – Auxiliary fuel tank (Badger #600 S Special)  1                                           NM!
               -4   454-044    A   CAPACITOR – (500MFD 25 VD C) at fuel pump   1                                                  NM!
               -5   492-038    A   VALVE ASSEMBLY – #4225-A2 fuel pump installation  1                                            NM!
               -6   14409-00   A  CHANNEL – Fuel pump mounting (short)         1                                                  NM!
               -7   14410-00   A  CHANNEL – Fuel pump mounting (long)          1                                                  NM!
               -8   W23X1A1G-5    CIRCUIT BREAKER – PSM5 Electric fuel pump installation (Spencer)  1                             43.12
               -9   80032-39   A  CLAMP – Fuel pump channel attachment, top    2                                                  NM!
              -10   U80032-075  A  CLAMP – Fuel pump channel attachment, bottom “2”; tank installation   4                        49.93
                                    rear “2”
              -11   -80032-020  A  CLAMP – Cable attachment, electric pump valve control  3                                       23.01
              -12   80032-39   A  CLAMP – Attachment, capacitor                1                                                  NM!
              -13   -80032-076  A  CLAMP – Fuel tank installation, front left  1                                                  22.54
              -14   -80032-077  A  CLAMP – Fuel tank installation, front right  1                                                 57.22
              -15   460-685    A  CONNECTOR – (W/H 200 x 4)                    2                                                  NM!
              -16   U12761-002  B  COVER – Inspection, round                   4                                                  46.86
              -17   U14446-000  A  DISC – (Aluminum, retainer, fuel tank neck grommet)  2                                         26.92
              -18   402X4      A  ELBOW – (W/H 400 x 4)                        2                                                  5.08
              -19   3400X2     A  ELBOW – Street                               1                                                  2.93
              -20   3400X2     A  FERRULE – Switch and valve control cable end  1                                                 2.93
              -21   14522-00   A  GAUGE – Fuel, in tank                        1                                                  NM!
              -22   14396-00   A  TANK ASSEMBLY – Auxiliary fuel               1                                                  NM!
              -23   80122-49   B  GROMMET – Fuselage                           4                                                  NM!
              -24   AN231-4    A  GROMMET – Fuselage                           2                                                  0.31
              -25   81342-81   A  GROMMET – (Pyralin) Fuel tank filler neck    2                                                  NM!
              -26   U80122-048  A  GROMMET – (Rubber) Fuel tank filler neck    1                                                  8.21
              -27   -471-060   A  KNOB – #3004-SM (Black) Control cable, auxiliary fuel tank valve  1                             3.7
              -28   U14412-002  A  LINE ASSEMBLY – Fuel (pump to strainer)     1                                                  64.05
              -29   U14412-003  A  LINE ASSEMBLY – Fuel (tank to pump)         1                                                  50.8
              -30   476-656    A  NIPPLE – (W/H 3325 x 2)                      1                                                  NM!
              -31   14416-00      TUBE ASSEMBLY – Rear seat support            3  22-807 and up                                   NM!
                    14416-04      TUBE ASSEMBLY – Rear seat support            3  22-354 to 22-806 inclusive                      NM!
              -32   14408-00   A  PLATE ASSEMBLY – Fuel line cover             1                                                  NM!
              -33   3152X6     A  PLUG – Drain                                 1                                                  0.83
              -34   3152X2     A  PLUG – Drain auxiliary fuel tank bottom      1                                                  1.42
              -35   481-666    A  PUMP – Electric, fuel #476-087               1                                                  NM!
              -36   416-128    A  SCREW – (AN501-10-6) Fuel gauge attachment   4                                                  NM!
              -37   14545-00   A  STRAINER – Bottom of tank                    1                                                  NM!
              -38   -14395-000  A  STRAP ASSEMBLY – Fuel tank                  2                                                  170.06
              -39   487-560    A  STUD – Durable dot #459, rear carpet installation  4                                            NM!
              -40   487-802    A  SWITCH – Toggle, fuel pump #86964            1                                                  NM!
              -41   14544-00   A  TAG – Auxiliary fuel system operation        1                                                  NM!

                                  A – Used on PA-22 with serial numbers 22-534 and up.
                                  B – Used on PA-22 with serial numbers 22-2378, 22-2425 to 22-3217
                                    inclusive and 22-3219 to 22-3386 inclusive.





                                                             117
