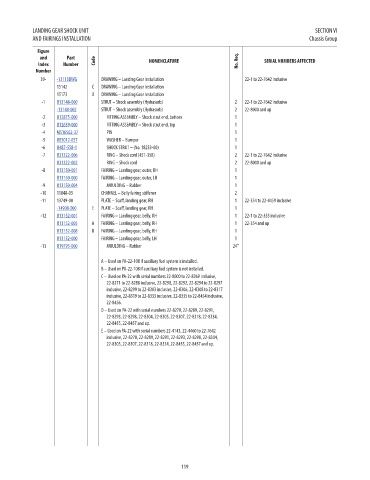

LANDING GEAR SHOCK UNIT SECTION VI
AND FAIRINGS INSTALLATION Chassis Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
39- -13113DWG DRAWING – Landing Gear Installation 22-1 to 22-7642 inclusive 65.97
15142 C DRAWING – Landing Gear Installation NM!
15173 D DRAWING – Landing Gear Installation NM!
-1 U13148-000 STRUT – Shock assembly (Hydrasorb) 2 22-1 to 22-7642 inclusive 1173.65
-13148-002 STRUT – Shock assembly (Hydrasorb) 2 22-8000 and up 1017.32
-2 U12875-000 FITTING ASSEMBLY – Shock strut end, bottom 1 235.21
-3 U12639-000 FITTING ASSEMBLY – Shock strut end, top 1 380.49
-4 MS16562-37 PIN 1 0.62
-5 U85012-057 WASHER – Bumper 1 5.68
-6 U487-558-1 SHOCK STRUT – (No. 18233-00) 1 482.18
-7 U31322-006 RING – Shock cord (451-358) 2 22-1 to 22-7642 inclusive 41.33
U31322-002 RING – Shock cord 2 22-8000 and up 46.25
-8 U13150-001 FAIRING – Landing gear, outer, RH 1 265.56
U13150-000 FAIRING – Landing gear, outer, LH 1 265.56
-9 U13150-004 MOULDING – Rubber 1 29.28
-10 11848-03 CHANNEL – Belly fairing stiffener 2 NM!
-11 13749-00 PLATE – Scuff, landing gear, RH 1 22-354 to 22-4459 inclusive NM!
-14908-000 E PLATE – Scuff, landing gear, RH 1 538.79
-12 U13152-001 FAIRING – Landing gear, belly, RH 1 22-1 to 22-353 inclusive 109.9
U13152-005 A FAIRING – Landing gear, belly, RH 1 22-354 and up 116.42
U13152-008 B FAIRING – Landing gear, belly, RH 1 171.79
U13152-000 FAIRING – Landing gear, belly, LH 1 137.78
-13 U19795-000 MOULDING – Rubber 24" 27.08

A – Used on PA-22-108 if auxiliary fuel system is installed.
B – Used on PA-22-108 if auxiliary fuel system is not installed.
C – Used on PA-22 with serial numbers 22-8000 to 22-8269 inclusive,
22-8271 to 22-8288 inclusive, 22-8290, 22-8292, 22-8294 to 22-8297
inclusive, 22-8299 to 22-8303 inclusive, 22-8306, 22-8308 to 22-8317
inclusive, 22-8319 to 22-8333 inclusive, 22-8335 to 22-8454 inclusive,
22-8456.
D – Used on PA-22 with serial numbers 22-8270, 22-8289, 22-8291,
22-8293, 22-8298, 22-8304, 22-8305, 22-8307, 22-8318, 22-8334,
22-8455, 22-8457 and up.
E – Used on PA-22 with serial numbers 22-4143, 22-4460 to 22-7642
inclusive, 22-8270, 22-8289, 22-8291, 22-8293, 22-8298, 22-8304,
22-8305, 22-8307, 22-8318, 22-8334, 22-8455, 22-8457 and up.
