P. 134

MAIN WHEEL ASSEMBLY                                                                          SECTION VI
            (Used with Disc Brake only)                                                                Chassis Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                  No. Req.  SERIAL NUMBERS AFFECTED                 PRICE
             Number
              40A-1  451-769      WHEEL ASSEMBLY – 6:00-6 Type III (40-28)     2                                                  NM!
               -2   753-128         OUTER WHEEL HALF ASSEMBLY – (3041A)        1                                                  NM!
               -3   13836             CUP – Bearing                            1                                                  36.98
               -4   753-176         INNER WHEEL HALF ASSEMBLY – (161-16)       1                                                  NM!
               -5   13836             CUP – Bearing                            1                                                  36.98
               -6   164-00500       BRAKE DISC ASSEMBLY                        1                                                  187.19
               -7   AN4-36A         BOLT                                       3                                                  0.88
               -8   MS21044N4       NUT                                        3                                                  0.3
               -9   NAS1149F0463P    WASHER                                    3                                                  0.06
              -10   157-00200       SHIELD – Dust                              1                                                  208.83
              -11   154-00400       SEAL – Wheel grease, felt                  2                                                  27.87
                    153-00500       GREASE RING                                2                                                  23.31
              -12   158-01000       CAP – Hub                                  1                                                  497.68
              -13   AN526-1024-8    SCREW – F. H. C.                           1                                                  0.05
              -14   MS35333-39      LOCK WASHER                                1                                                  0.06
              -15   MS35265-45      SCREW – F. H. C.                           6                                                  0.36
              -16   MS35333-38      LOCK WASHER                                6                                                  0.04
              -17   13889           CONE BEARING                               2                                                  77.98





                                                                                                     15
                                                                                                  16
                                                                          6

                                    7
                                                     4
                               9
                            8
                                                                                             11

                                                                                  17
                                       2
                                                                             5
                                      3

                                      17
                                12
                    10


                                                                       1

                                                   16
                                               15


                       14
                    13

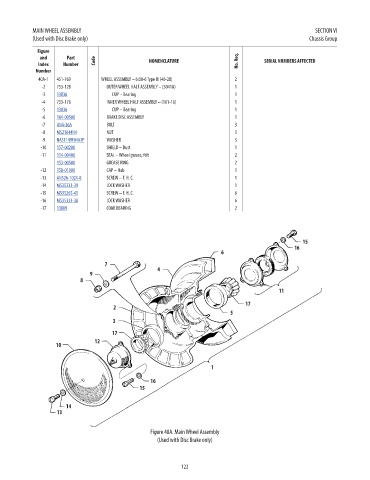

                                                   Figure 40A. Main Wheel Assembly
                                                     (Used with Disc Brake only)




                                                             122
