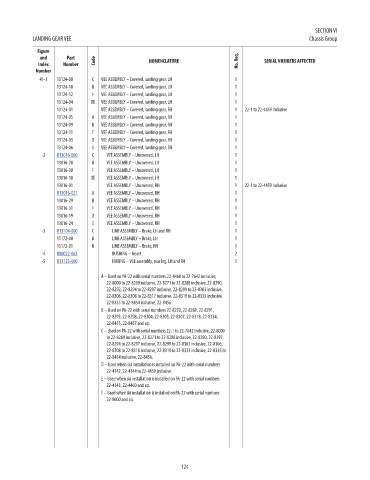

Page 136 - Piper PA-22 Tri-Pacer Interactive Digital Parts Catalog

SECTION VI
LANDING GEAR VEE Chassis Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
41-1 13124-00 C VEE ASSEMBLY – Covered, landing gear, LH 1 NM!
13124-10 B VEE ASSEMBLY – Covered, landing gear, LH 1 NM!
13124-12 F VEE ASSEMBLY – Covered, landing gear, LH 1 NM!
13124-04 DE VEE ASSEMBLY – Covered, landing gear, LH 1 NM!
13124-01 VEE ASSEMBLY – Covered, landing gear, RH 1 22-1 to 22-4459 inclusive NM!
13124-05 A VEE ASSEMBLY – Covered, landing gear, RH 1 NM!
13124-09 B VEE ASSEMBLY – Covered, landing gear, RH 1 NM!
13124-11 F VEE ASSEMBLY – Covered, landing gear, RH 1 NM!
13124-03 D VEE ASSEMBLY – Covered, landing gear, RH 1 NM!
13124-06 E VEE ASSEMBLY – Covered, landing gear, RH 1 NM!
-2 U13016-000 C VEE ASSEMBLY – Uncovered, LH 1 1970.2
13016-28 B VEE ASSEMBLY – Uncovered, LH 1 NM!
13016-30 F VEE ASSEMBLY – Uncovered, LH 1 NM!
13016-18 DE VEE ASSEMBLY – Uncovered, LH 1 NM!
13016-01 VEE ASSEMBLY – Uncovered, RH 1 22-1 to 22-4459 inclusive NM!
U13016-021 A VEE ASSEMBLY – Uncovered, RH 1 1970.2
13016-29 B VEE ASSEMBLY – Uncovered, RH 1 NM!
13016-31 F VEE ASSEMBLY – Uncovered, RH 1 NM!
13016-19 D VEE ASSEMBLY – Uncovered, RH 1 NM!
13016-24 E VEE ASSEMBLY – Uncovered, RH 1 NM!
-3 U13104-000 C LINE ASSEMBLY – Brake, LH and RH 1 58.26
15172-00 B LINE ASSEMBLY – Brake, LH 1 NM!
15172-01 B LINE ASSEMBLY – Brake, RH 1 NM!
-4 U80022-063 BUSHING – Insert 2 13.19
-5 U13123-000 FAIRING – VEE assembly, rear leg, LH and RH 1 51.08

A – Used on PA-22 with serial numbers 22-4460 to 22-7642 inclusive,
22-8000 to 22-8269 inclusive, 22-8271 to 22-8288 inclusive, 22-8290,
22-8292, 22-8294 to 22-8297 inclusive, 22-8299 to 22-8303 inclusive,
22-8306, 22-8308 to 22-8317 inclusive, 22-8319 to 22-8333 inclusive,
22-8335 to 22-8454 inclusive, 22-8456.
B – Used on PA-22 with serial numbers 22-8270, 22-8289, 22-8291,
22-8293, 22-8298, 22-8304, 22-8305, 22-8307, 22-8318, 22-8334,
22-8455, 22-8457 and up.
C – Used on PA-22 with serial numbers 22-1 to 22-7642 inclusive, 22-8000
to 22-8269 inclusive, 22-8271 to 22-8288 inclusive, 22-8290, 22-8292,
22-8294 to 22-8297 inclusive, 22-8299 to 22-8303 inclusive, 22-8306,
22-8308 to 22-8318 inclusive, 22-8319 to 22-8333 inclusive, 22-8335 to
22-8454 inclusive, 22-8456.
D – Used when ski installation is installed on PA-22 with serial numbers
22-4142, 22-4144 to 22-4459 inclusive.
E – Used when ski installation is installed on PA-22 with serial numbers
22-4143, 22-4460 and up.
F – Used when ski installation is installed on PA-22 with serial numbers
22-8000 and up.

124
