P. 140

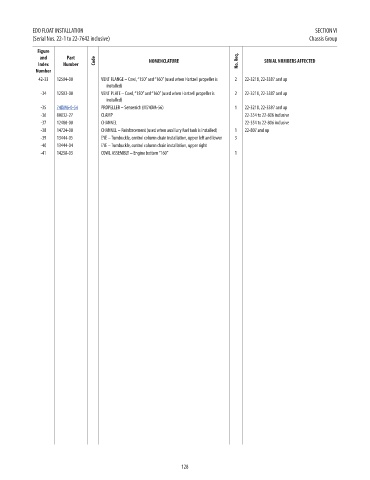

EDO FLOAT INSTALLATION                                                                       SECTION VI
            (Serial Nos. 22-1 to 22-7642 inclusive)                                                    Chassis Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                  No. Req.  SERIAL NUMBERS AFFECTED                 PRICE
             Number
              42-33  12504-00     VENT FLANGE – Cowl, “150” and “160” (used when Hartzell propeller is   2  22-3218, 22-3387 and up  NM!
                                    installed)
              -34   12503-00      VENT PLATE – Cowl, “150” and “160” (used when Hartzell propeller is   2  22-3218, 22-3387 and up  NM!
                                    installed)
              -35   74DM6-0-54    PROPELLER – Sensenich (M74DM-56)             1  22-3218, 22-3387 and up                         5152.5
              -36   80032-27      CLAMP                                           22-354 to 22-806 inclusive                      NM!
              -37   12480-00      CHANNEL                                         22-354 to 22-806 inclusive                      NM!
              -38   14724-00      CHANNEL – Reinforcement (used when auxiliary fuel tank is installed)  1  22-807 and up          NM!
              -39   13444-05      EYE – Turnbuckle, control column chain installation, upper left and lower  3                    NM!
              -40   13444-04      EYE – Turnbuckle, control column chain installation, upper right                                NM!
              -41   14258-03      COWL ASSEMBLY – Engine bottom “160”          1                                                  NM!































































                                                             128
