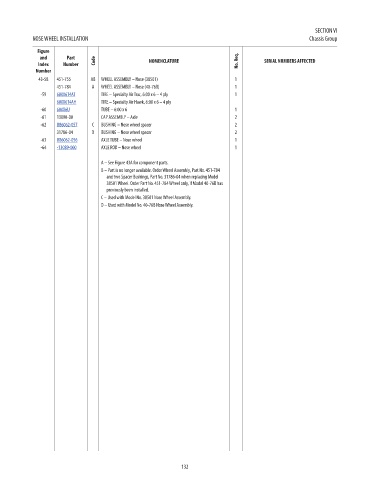

Page 144 - Piper PA-22 Tri-Pacer Interactive Digital Parts Catalog

SECTION VI
NOSE WHEEL INSTALLATION Chassis Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
43-58 451-755 AB WHEEL ASSEMBLY – Nose (38501) 1 NM!
451-784 A WHEEL ASSEMBLY – Nose (40-76B) 1 NM!
-59 600X6T4AT TIRE – Specialty Air Trac, 6:00 x 6 – 4 ply 1 110.46
600X6T4AH TIRE – Specialty Air Hawk, 6:00 x 6 – 4 ply 117.26
-60 600X6U TUBE – 6:00 x 6 1 91.73
-61 13090-00 CAP ASSEMBLY – Axle 2 NM!
-62 U86062-057 C BUSHING – Nose wheel spacer 2 33.34
31786-04 D BUSHING – Nose wheel spacer 2 NM!
-63 U86062-056 AXLE TUBE – Nose wheel 1 111.49
-64 -13089-000 AXLE ROD – Nose wheel 1 114.33

A – See Figure 43A for component parts.
B – Part is no longer available. Order Wheel Assembly, Part No. 451-784
and two Spacer Bushings, Part No. 31786-04 when replacing Model
38501 Wheel. Order Part No. 451-784 Wheel only, if Model 40-76B has
previously been installed.
C – Used with Model No. 38501 Nose Wheel Assembly.
D – Used with Model No. 40-76B Nose Wheel Assembly.

132
