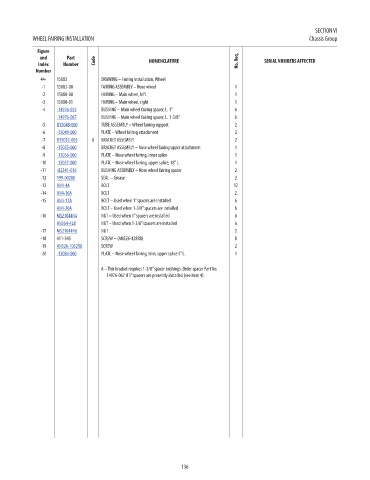

SECTION VI
WHEEL FAIRING INSTALLATION Chassis Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
44- 15083 DRAWING – Fairing Installation, Wheel NM!
-1 15082-00 FAIRING ASSEMBLY – Nose wheel 1 NM!
-2 15080-00 FAIRING – Main wheel, left 1 NM!
-3 15080-01 FAIRING – Main wheel, right 1 NM!
-4 -14976-055 BUSHING – Main wheel fairing spacer, L. 1” 6 15.82
-14976-067 BUSHING – Main wheel fairing spacer, L. 1-3/8” 6 15.15
-5 U15048-000 TUBE ASSEMBLY – Wheel fairing support 2 175.84
-6 -15049-000 PLATE – Wheel fairing attachment 2 75.64
-7 U15052-003 A BRACKET ASSEMBLY 2 155.76
-8 -15055-000 BRACKET ASSEMBLY – Nose wheel fairing upper attachment 1 64.99
-9 -15056-000 PLATE – Nose wheel fairing, inner splice 1 33.27
-10 -15057-000 PLATE – Nose wheel fairing, upper splice, 18” L. 1 35.44
-11 -82341-016 BUSHING ASSEMBLY – Nose wheel fairing spacer 2 57.56
-12 199-00200 SEAL – Grease 2 56.55
-13 AN4-4A BOLT 12 0.3
-14 AN4-16A BOLT 2 0.4
-15 AN4-17A BOLT – Used when 1” spacers are installed 6 0.54
AN4-20A BOLT – Used when 1-3/8” spacers are installed 6 0.4
-16 MS21044N4 NUT – Used when 1” spacers are installed 6 0.3
AN364-428 NUT – Used when 1-3/8” spacers are installed 6 0.16
-17 MS21044N6 NUT 2 0.58
-18 411-345 SCREW – (AN526-428R8) 8 NM!
-19 AN526-1032R8 SCREW 2 0.18
-20 -15084-000 PLATE – Nose wheel fairing, trim, upper splice 5” L. 1 37.04

A – This bracket requires 1-3/8” spacer bushings. Order spacer Part No.
14976-067 if 1” spacers are presently installed (see item 4).

136
