P. 153

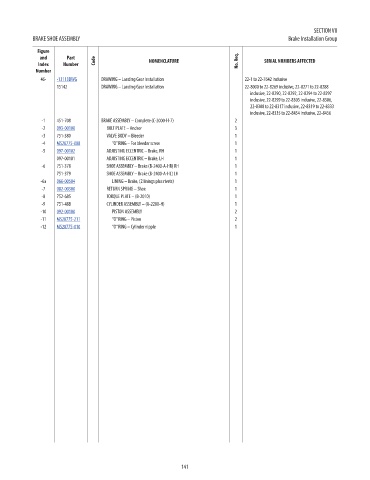

SECTION VII
            BRAKE SHOE ASSEMBLY                                                                 Brake Installation Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                  No. Req.  SERIAL NUMBERS AFFECTED                 PRICE
             Number
              46-   -13113DWG     DRAWING – Landing Gear Installation             22-1 to 22-7642 inclusive                       65.97
                    15142         DRAWING – Landing Gear Installation             22-8000 to 22-8269 inclusive, 22-8271 to 22-8288   NM!
                                                                                    inclusive, 22-8290, 22-8292, 22-8294 to 22-8297
                                                                                    inclusive, 22-8299 to 22-8303 inclusive, 22-8306,
                                                                                    22-8308 to 22-8317 inclusive, 22-8319 to 22-8333
                                                                                    inclusive, 22-8335 to 22-8454 inclusive, 22-8456
               -1   451-708       BRAKE ASSEMBLY – Complete (C-2000-H-7)       2                                                  NM!
               -2   093-00100       BOLT PLATE – Anchor                        3                                                  0
               -3   751-380         VALVE BODY – Bleeder                       1                                                  NM!
               -4   MS28775-008       “O” RING – For bleeder screw             1                                                  0.48
               -5   097-00102       ADJUSTING ECCENTRIC – Brake, RH            1                                                  204.99
                    097-00101       ADJUSTING ECCENTRIC – Brake, LH            1                                                  NM!
               -6   751-378         SHOE ASSEMBLY – Brake (B-2400-A-HR) RH     1                                                  NM!
                    751-379         SHOE ASSEMBLY – Brake (B-2400-A-HL) LH     1                                                  NM!
              -6a   066-00504         LINING – Brake, (2 linings plus rivets)  1                                                  85.05
               -7   082-00300       RETURN SPRING – Shoe                       1                                                  78.2
               -8   752-685         TORQUE PLATE – (B-2010)                    1                                                  NM!
               -9   751-488         CYLINDER ASSEMBLY – (A-2200-H)             1                                                  NM!
              -10   092-00100         PISTON ASSEMBLY                          2                                                  592.1
              -11   MS28775-211       “O” RING – Piston                        2                                                  0.56
              -12   MS28775-010       “O” RING – Cylinder nipple               1                                                  0.3
















































                                                             141
