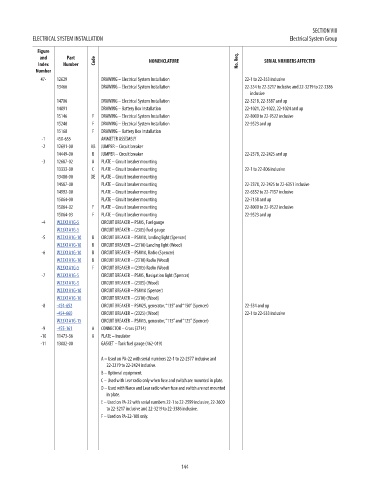

SECTION VIII
ELECTRICAL SYSTEM INSTALLATION Electrical System Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
47- 12629 DRAWING – Electrical System Installation 22-1 to 22-353 inclusive NM!
13466 DRAWING – Electrical System Installation 22-354 to 22-3217 inclusive and 22-3219 to 22-3386 NM!
inclusive
14706 DRAWING – Electrical System Installation 22-3218, 22-3387 and up NM!
14091 DRAWING – Battery Box Installation 22-1021, 22-1022, 22-1024 and up NM!
15146 F DRAWING – Electrical System Installation 22-8000 to 22-9522 inclusive NM!
15240 F DRAWING – Electrical System Installation 22-9523 and up NM!
15168 F DRAWING – Battery Box Installation NM!
-1 450-655 AMMETER ASSEMBLY NM!
-2 12691-00 AB JUMPER – Circuit breaker NM!
14449-00 B JUMPER – Circuit breaker 22-2378, 22-2425 and up NM!
-3 12687-02 A PLATE – Circuit breaker mounting NM!
13333-00 C PLATE – Circuit breaker mounting 22-1 to 22-806 inclusive NM!
13480-00 DE PLATE – Circuit breaker mounting NM!
14587-00 PLATE – Circuit breaker mounting 22-2378, 22-2425 to 22-6351 inclusive NM!
14992-00 PLATE – Circuit breaker mounting 22-6352 to 22-7157 inclusive NM!
15064-00 PLATE – Circuit breaker mounting 22-7158 and up NM!
15064-02 F PLATE – Circuit breaker mounting 22-8000 to 22-9522 inclusive NM!
15064-03 F PLATE – Circuit breaker mounting 22-9523 and up NM!
-4 W23X1A1G-5 CIRCUIT BREAKER – PSM5, Fuel gauge 43.12
W23X1A1G-5 CIRCUIT BREAKER – (2305) Fuel gauge 43.12
-5 W23X1A1G-10 B CIRCUIT BREAKER – PSM10, landing light (Spencer) 48.4
W23X1A1G-10 B CIRCUIT BREAKER – (2310) Landing light (Wood) 48.4
-6 W23X1A1G-10 B CIRCUIT BREAKER – PSM10, Radio (Spencer) 48.4
W23X1A1G-10 B CIRCUIT BREAKER – (2310) Radio (Wood) 48.4
W23X1A1G-5 F CIRCUIT BREAKER – (2305) Radio (Wood) 43.12
-7 W23X1A1G-5 CIRCUIT BREAKER – PSM5, Navigation light (Spencer) 43.12
W23X1A1G-5 CIRCUIT BREAKER – (2305) (Wood) 43.12
W23X1A1G-10 CIRCUIT BREAKER – PSM10 (Spencer) 48.4
W23X1A1G-10 CIRCUIT BREAKER – (2310) (Wood) 48.4
-8 -454-652 CIRCUIT BREAKER – PSM25, generator, “135” and “150” (Spencer) 22-534 and up 26.11
-454-660 CIRCUIT BREAKER – (2325) (Wood) 22-1 to 22-533 inclusive 116.26
W23X1A1G-15 CIRCUIT BREAKER – PSM15, generator, “115” and “125” (Spencer) 39.96
-9 -455-161 A CONNECTOR – Cross (3714) 0.92
-10 11473-36 A PLATE – Insulator NM!
-11 13002-00 GASKET – Tank fuel gauge (462-019) NM!

A – Used on PA-22 with serial numbers 22-1 to 22-2377 inclusive and
22-2379 to 22-2424 inclusive.
B – Optional equipment.
C – Used with Lear radio only when fuse and switch are mounted in plate.
D – Used with Narco and Lear radio when fuse and switch are not mounted
in plate.
E – Used on PA-22 with serial numbers 22-1 to 22-2599 inclusive, 22-2600
to 22-3217 inclusive and 22-3219 to 22-3386 inclusive.
F – Used on PA-22-108 only.

144
