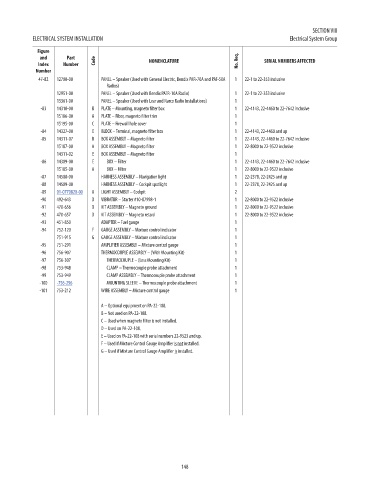

SECTION VIII
ELECTRICAL SYSTEM INSTALLATION Electrical System Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
47-82 12700-00 PANEL – Speaker (Used with General Electric, Bendix PAR-70A and PAT-50A 1 22-1 to 22-353 inclusive NM!
Radios)
12951-00 PANEL – Speaker (Used with Bendix PATR-10A Radio) 1 22-1 to 22-353 inclusive NM!
13361-00 PANEL – Speaker (Used with Lear and Narco Radio Installations) 1 NM!
-83 14310-00 B PLATE – Mounting, magneto filter box 1 22-4143, 22-4460 to 22-7642 inclusive NM!
15186-00 A PLATE – Fiber, magneto filter trim 1 NM!
15195-00 C PLATE – Firewall hole cover 1 NM!
-84 14327-00 E BLOCK – Terminal, magneto filter box 1 22-4143, 22-4460 and up NM!
-85 14311-07 B BOX ASSEMBLY – Magneto filter 1 22-4143, 22-4460 to 22-7642 inclusive NM!
15187-00 A BOX ASSEMBLY – Magneto filter 1 22-8000 to 22-9522 inclusive NM!
14311-02 E BOX ASSEMBLY – Magneto filter 1 NM!
-86 14309-00 E BOX – Filter 1 22-4143, 22-4460 to 22-7642 inclusive NM!
15185-00 A BOX – Filter 1 22-8000 to 22-9522 inclusive NM!
-87 14508-00 HARNESS ASSEMBLY – Navigation light 1 22-2378, 22-2425 and up NM!
-88 14509-00 HARNESS ASSEMBLY – Cockpit spotlight 1 22-2378, 22-2425 and up NM!
-89 01-0770820-00 A LIGHT ASSEMBLY – Cockpit 2 198.12
-90 492-643 D VIBRATOR – Starter #10-87998-1 1 22-8000 to 22-9522 inclusive NM!
-91 470-656 D KIT ASSEMBLY – Magneto ground 1 22-8000 to 22-9522 inclusive NM!
-92 470-657 D KIT ASSEMBLY – Magneto retard 1 22-8000 to 22-9522 inclusive NM!
-93 451-850 ADAPTER – Fuel gauge 1 NM!
-94 752-120 F GAUGE ASSEMBLY – Mixture control indicator 1 NM!
751-915 G GAUGE ASSEMBLY – Mixture control indicator 1 NM!
-95 751-291 AMPLIFIER ASSEMBLY – Mixture control gauge 1 NM!
-96 756-907 THERMOCOUPLE ASSEMBLY – (With Mounting Kit) 1 NM!
-97 756-307 THERMOCOUPLE – (Less Mounting Kit) 1 NM!
-98 753-948 CLAMP – Thermocouple probe attachment 1 NM!
-99 753-949 CLAMP ASSEMBLY – Thermocouple probe attachment 1 NM!
-100 -756-256 MOUNTING SLEEVE – Thermocouple probe attachment 1 6.46
-101 753-212 WIRE ASSEMBLY – Mixture control gauge 1 NM!
X
A – Optional equipment on PA-22-108. X
B – Not used on PA-22-108. X
C – Used when magneto filter is not installed.
D – Used on PA-22-108.
E – Used on PA-22-108 with serial numbers 22-9523 and up.
F – Used if Mixture Control Gauge Amplifier is not installed.
G – Used if Mixture Control Gauge Amplifier is installed.

148
