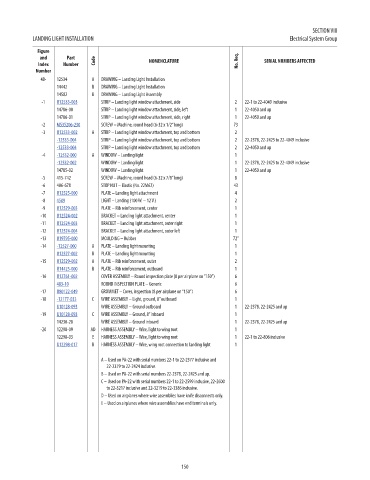

SECTION VIII
            LANDING LIGHT INSTALLATION                                                           Electrical System Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                  No. Req.  SERIAL NUMBERS AFFECTED                 PRICE
             Number
              48-   12534      A  DRAWING – Landing Light Installation                                                            NM!
                    14442      B  DRAWING – Landing Light Installation                                                            NM!
                    14502      B   DRAWING – Landing Light Assembly                                                               NM!
               -1   U12533-003    STRIP – Landing light window attachment, side  2  22-1 to 22-4049 inclusive                     8.27
                    14786-00      STRIP – Landing light window attachment, side, left  1  22-4050 and up                          NM!
                    14786-01      STRIP – Landing light window attachment, side, right  1  22-4050 and up                         NM!
               -2   MS35206-230   SCREW – Machine, round head (6-32 x 1/2” long)  73                                              0.08
               -3   U12533-002  A   STRIP – Landing light window attachment, top and bottom  2                                    4.65
                    -12533-004    STRIP – Landing light window attachment, top and bottom  2  22-2378, 22-2425 to 22-4049 inclusive  10.06
                    -12533-004    STRIP – Landing light window attachment, top and bottom  2  22-4050 and up                      10.06
               -4   -12532-000  A   WINDOW – Landing light                     1                                                  75.74
                    -12532-002    WINDOW – Landing light                       1  22-2378, 22-2425 to 22-4049 inclusive           99
                    14785-02      WINDOW – Landing light                       1  22-4050 and up                                  NM!
               -5   415-742       SCREW – Machine, round head (6-32 x 7/8” long)  8                                               NM!
               -6   406-678       STOP NUT – Elastic (No. 22M62)              43                                                  NM!
               -7   U12525-000    PLATE – Landing light attachment             4                                                  51.81
               -8   4509          LIGHT – Landing (100 W. – 12 V.)             2                                                  21.84
               -9   U12529-003    PLATE – Rib reinforcement, center            1                                                  34.71
              -10   U12524-002    BRACKET – Landing light attachment, center   1                                                  27.63
              -11   U12524-003    BRACKET – Landing light attachment, outer right  1                                              20.56
              -12   U12524-004    BRACKET – Landing light attachment, outer left  1                                               20.46
              -13   U19795-000    MOULDING – Rubber                           72”                                                 27.08
              -14   -12527-000  A   PLATE – Landing light mounting             1                                                  124.85
                    U12527-002  B   PLATE – Landing light mounting             1                                                  125.31
              -15   U12529-002  A   PLATE – Rib reinforcement, outer           2                                                  28.82
                    U14425-000  B   PLATE – Rib reinforcement, outboard        1                                                  75.25
              -16   U12761-002    COVER ASSEMBLY – Round inspection plate (8 per airplane on “150”)  6                            46.86
                    483-10        ROUND INSPECTION PLATE – Generic             6                                                  2.25
              -17   U80122-049    GROMMET – Cover, inspection (8 per airplane on “150”)  6                                        5.7
              -18   -12177-033  C   WIRE ASSEMBLY – Light, ground, 8” outboard  1                                                 13.87
                    U10128-093    WIRE ASSEMBLY – Ground outboard              1  22-2378, 22-2425 and up                         25.8
              -19   U10128-093  C   WIRE ASSEMBLY – Ground, 8” inboard         1                                                  25.8
                    14230-28      WIRE ASSEMBLY – Ground inboard               1  22-2378, 22-2425 and up                         NM!
              -20   12298-09   AD  HARNESS ASSEMBLY – Wire, light to wing root  1                                                 NM!
                    12298-03   E   HARNESS ASSEMBLY – Wire, light to wing root  1  22-1 to 22-806 inclusive                       NM!
                    U12298-017  B   HARNESS ASSEMBLY – Wire, wing root connection to landing light  1                             164.56


                                  A – Used on PA-22 with serial numbers 22-1 to 22-2377 inclusive and
                                    22-2379 to 22-2424 inclusive.
                                  B – Used on PA-22 with serial numbers 22-2378, 22-2425 and up.
                                  C – Used on PA-22 with serial numbers 22-1 to 22-2599 inclusive, 22-2600
                                    to 22-3217 inclusive and 22-3219 to 22-3386 inclusive.
                                  D – Used on airplanes where wire assemblies have knife disconnects only.
                                  E – Used on airplanes where wire assemblies have end terminals only.
