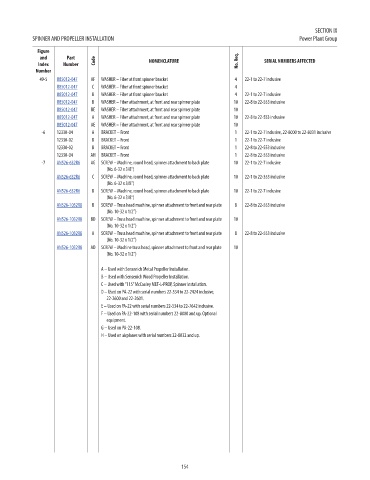

SECTION IX
            SPINNER AND PROPELLER INSTALLATION                                                      Power Plant Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                  No. Req.  SERIAL NUMBERS AFFECTED                 PRICE
             Number
              49-5  U85012-047  AF  WASHER – Fiber at front spinner bracket    4   22-1 to 22-7 inclusive                         0.83
                    U85012-047  C  WASHER – Fiber at front spinner bracket     4                                                  0.83
                    U85012-047  B  WASHER – Fiber at front spinner bracket     4   22-1 to 22-7 inclusive                         0.83
                    U85012-047  B  WASHER – Fiber attachment, at front and rear spinner plate  10   22-8 to 22-553 inclusive      0.83
                    U85012-047  BE  WASHER – Fiber attachment, at front and rear spinner plate  10                                0.83
                    U85012-047  A  WASHER – Fiber attachment, at front and rear spinner plate  10   22-8 to 22-5S3 inclusive      0.83
                    U85012-047  AE  WASHER – Fiber attachment, at front and rear spinner plate  10                                0.83
               -6   12330-04   A  BRACKET – Front                              1   22-1 to 22-7 inclusive, 22-8000 to 22-8031 inclusive  NM!
                    12330-02   B  BRACKET – Front                              1   22-1 to 22-7 inclusive                         NM!
                    12330-02   B  BRACKET – Front                              1   22-8 to 22-553 inclusive                       NM!
                    12330-04   AH  BRACKET – Front                             1   22-8 to 22-553 inclusive                       NM!
               -7   AN526-632R6  AG  SCREW – Machine, round head, spinner attachment to back plate    10   22-1 to 22-7 inclusive  0.2
                                    (No. 6-32 x 3/8”)
                    AN526-632R6  C  SCREW – Machine, round head, spinner attachment to back plate    10   22-1 to 22-353 inclusive  0.2
                                    (No. 6-32 x 3/8”)
                    AN526-632R6  B  SCREW – Machine, round head, spinner attachment to back plate    10   22-1 to 22-7 inclusive  0.2
                                    (No. 6-32 x 3/8”)
                    AN526-1032R8  B  SCREW – Truss head machine, spinner attachment to front and rear plate   8   22-8 to 22-553 inclusive  0.18
                                    (No. 10-32 x 1/2”)
                    AN526-1032R8  BD  SCREW – Truss head machine, spinner attachment to front and rear plate   10                 0.18
                                    (No. 10-32 x 1/2”)
                    AN526-1032R8  A  SCREW – Truss head machine, spinner attachment to front and rear plate   8   22-8 to 22-553 inclusive  0.18
                                    (No. 10-32 x 1/2”)
                    AN526-1032R8  AD  SCREW – Machine truss head, spinner attachment to front and rear plate   10                 0.18
                                    (No. 10-32 x 1/2”)

                                  A – Used with Sensenich Metal Propeller Installation.
                                  B – Used with Sensenich Wood Propeller Installation.
                                  C – Used with “115” McCauley MET-L-PROP, Spinner Installation.
                                  D – Used on PA-22 with serial numbers 22-534 to 22-2424 inclusive,
                                    22-2600 and 22-2601.
                                  E – Used on PA-22 with serial numbers 22-534 to 22-7642 inclusive.
                                  F – Used on PA-22-108 with serial numbers 22-8000 and up. Optional
                                    equipment.
                                  G – Used on PA-22-108.
                                  H – Used on airplanes with serial numbers 22-8032 and up.


























                                                             154
