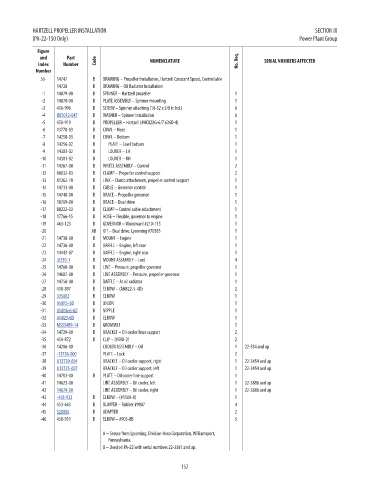

HARTZELL PROPELLER INSTALLATION                                                              SECTION IX
            (PA-22-150 Only)                                                                        Power Plant Group

             Figure
              and      Part
              Index   Number     Code              NOMENCLATURE                 No. Req.  SERIAL NUMBERS AFFECTED                 PRICE
             Number
              50-   14747       B  DRAWING – Propeller Installation, Hartzell Constant Speed, Controllable                        NM!
                    14728       B  DRAWING – Oil Radiator Installation                                                            NM!
               -1   14879-00    B  SPINNER – Hartzell propeller                1                                                  NM!
               -2   14878-00    B  PLATE ASSEMBLY – Spinner mounting           1                                                  NM!
               -3   416-996     B  SCREW – Spinner attaching (10-32 x 5/8 tr. hd.)  6                                             NM!
               -4   U85012-047  B  WASHER – Spinner installation               6                                                  0.83
               -5   450-919     B  PROPELLER – Hartzell (#HC82XG-6/7 636D-4)   1                                                  NM!
               -6   13778-03    B  COWL – Nose                                 1                                                  NM!
               -7   14258-03    B  COWL – Bottom                               1                                                  NM!
               -8   14256-02    B    PLATE – Cowl bottom                       1                                                  NM!
               -9   14303-02    B    LOUVER – LH                               1                                                  NM!
              -10   14301-02    B    LOUVER – RH                               1                                                  NM!
              -11   14267-00    B  WHEEL ASSEMBLY – Control                    2                                                  NM!
              -12   80032-83    B  CLAMP – Propeller control support           2                                                  NM!
              -13   81262-70    B  LINK – Clamp attachment, propeller control support  1                                          NM!
              -14   14733-00    B  CABLE – Governor control                    1                                                  NM!
              -15   14748-00    B  BRACE – Propeller governor                  1                                                  NM!
              -16   18769-00    B  BRACE – Dual drive                          1                                                  NM!
              -17   80222-33    B  CLAMP – Control cable attachment            1                                                  NM!
              -18   17766-15    B  HOSE – Flexible, governor to engine         1                                                  NM!
              -19   463-123     B  GOVERNOR – Woodward #210-115                1                                                  NM!
              -20              AB  KIT – Dual drive, Lycoming #70385           1                                                  X
              -21   14738-00    B  MOUNT – Engine                              1                                                  NM!
              -22   14736-00    B  BAFFLE – Engine, left rear                  1                                                  NM!
              -23   14443-07    B  BAFFLE – Engine, right rear                 1                                                  NM!
              -24   J6230-1     B  MOUNT ASSEMBLY – Lord                       4                                                  258.03
              -25   14760-00    B  LINE – Pressure, propeller governor         1                                                  NM!
              -26   14607-00    B  LINE ASSEMBLY – Pressure, propeller governor  1                                                NM!
              -27   14758-00    B  BAFFLE – At oil radiator                    1                                                  NM!
              -28   458-897     B  ELBOW – (AN822-5-4D)                        2                                                  NM!
              -29   3350X2      B  ELBOW                                       1                                                  4.85
              -30   AN815-5D    B  UNION                                       1                                                  6.89
              -31   AN816-6-6D  B  NIPPLE                                      1                                                  9
              -32   AN823-6D    B  ELBOW                                       1                                                  26.2
              -33   MS35489-14  B  GROMMET                                     1                                                  0.78
              -34   14729-00    B  BRACKET – Oil cooler lines support          2                                                  NM!
              -35   454-872     B  CLIP – (#598-2)                             2                                                  NM!
              -36   14206-00       COOLER ASSEMBLY – Oil                       1  22-534 and up                                   NM!
              -37   -13726-000     PLATE – Lock                                2                                                  6.4
              -38   U13720-004     BRACKET – Oil cooler support, right         1  22-3454 and up                                  301.38
              -39   U13725-007     BRACKET – Oil cooler support, left          1  22-3454 and up                                  593.69
              -40   14783-00    B  PLATE – Oil cooler line support             1                                                  NM!
              -41   14623-00       LINE ASSEMBLY – Oil cooler, left            1  22-3886 and up                                  NM!
              -42   14624-00       LINE ASSEMBLY – Oil cooler, right           1  22-3886 and up                                  NM!
              -43   -458-932    B  ELBOW – (#1100-8)                           1                                                  14.44
              -44   453-643     B  BUMPER – Rubber #9807                       4                                                  NM!
              -45   3200X6      B  ADAPTER                                     2                                                  4.58
              -46   458-931     B  ELBOW – #905-8B                             3                                                  NM!
                                                                                                                                  X
                                   A – Secure from Lycoming, Division-Avco Corporation, Williamsport,
                                     Pennsylvania.
                                   B – Used on PA-22 with serial numbers 22-3387 and up.
