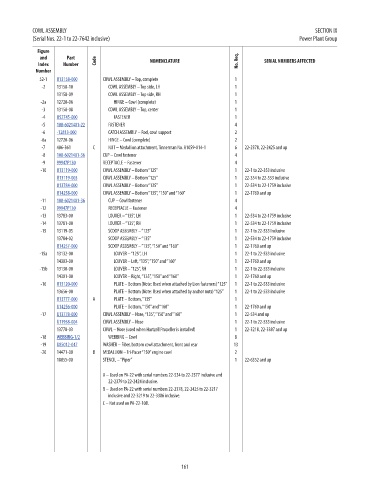

Page 173 - Piper PA-22 Tri-Pacer Interactive Digital Parts Catalog

COWL ASSEMBLY SECTION IX
(Serial Nos. 22-1 to 22-7642 inclusive) Power Plant Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
52-1 U13158-000 COWL ASSEMBLY – Top, complete 1 1554.92
-2 13158-10 COWL ASSEMBLY – Top side, LH 1 NM!
13158-09 COWL ASSEMBLY – Top side, RH 1 NM!
-2a 12720-06 HINGE – Cowl (complete) 1 NM!
-3 13158-08 COWL ASSEMBLY – Top, center 1 NM!
-4 U52745-000 FASTENER 1 5.07
-5 108-6021401-22 FASTENER 4 109.39
-6 -12813-000 CATCH ASSEMBLY – Rod, cowl support 2 58.99
-6a 12720-06 HINGE – Cowl (complete) 2 NM!
-7 406-361 C NUT – Medallion attachment, Tinnerman No. A1059-014-1 6 22-2378, 22-2425 and up NM!
-8 108-6021401-36 CUP – Cowl fastener 4 32.83
-9 99947P130 RECEPTACLE – Fastener 4 6.46
-10 U13119-000 COWL ASSEMBLY – Bottom “125” 1 22-1 to 22-353 inclusive 1898.57
U13119-003 COWL ASSEMBLY – Bottom “125” 1 22-354 to 22-533 inclusive 1874.56
U13784-000 COWL ASSEMBLY – Bottom “135” 1 22-534 to 22-1759 inclusive 1772.47
U14258-000 COWL ASSEMBLY – Bottom “135”, “150” and “160” 1 22-1760 and up 3770.96
-11 108-6021401-36 CUP – Cowl fastener 4 32.83
-12 99947P130 RECEPTACLE – Fastener 4 6.46
-13 13783-00 LOUVER – “135”, LH 1 22-534 to 22-1759 inclusive NM!
-14 13781-00 LOUVER – “135”, RH 1 22-534 to 22-1759 inclusive NM!
-15 13119-05 SCOOP ASSEMBLY – “125” 1 22-1 to 22-533 Inclusive NM!
13784-02 SCOOP ASSEMBLY – “135” 1 22-534 to 22-1759 inclusive NM!
U14257-000 SCOOP ASSEMBLY – “135”, “150” and “160” 1 22-1760 and up 1771.02
-15a 13132-00 LOUVER – “125 “, LH 1 22-1 to 22-533 inclusive NM!
14303-00 LOUVER – Left, “135”, “150” and “160” 1 22-1760 and up NM!
-15b 13130-00 LOUVER – “125”, RH 1 22-1 to 22-533 inclusive NM!
14301-00 LOUVER – Right, “135”, “150” and “160” 1 22-1760 and up NM!
-16 U13120-000 PLATE – Bottom (Note: Used when attached by Lion fasteners) “125” 1 22-1 to 22-533 inclusive 256.58
13656-00 PLATE – Bottom (Note: Used when attached by anchor nuts) “125” 1 22-1 to 22-533 inclusive NM!
U13777-000 A PLATE – Bottom, “135” 1 46.11
U14256-000 PLATE – Bottom, “150” and “160” 1 22-1760 and up 26.29
-17 U13778-000 COWL ASSEMBLY – Nose, “135”, “150” and “160” 1 22-534 and up 2098.58
U11958-004 COWL ASSEMBLY – Nose 1 22-1 to 22-533 inclusive 1710.62
13778-03 COWL – Nose (used when Hartzell Propeller is installed) 1 22-3218, 22-3387 and up NM!
-18 WEBBING-1/2 WEBBING – Cowl 8 0.8
-19 U85012-047 WASHER – Fiber, bottom cowl attachment, front and rear 13 0.83
-20 14471-00 B MEDALLION – Tri-Pacer “150” engine cowl 2 NM!
18855-00 STENCIL – “Piper” 1 22-6352 and up NM!

A – Used on PA-22 with serial numbers 22-534 to 22-2377 inclusive and
22-2379 to 22-2424 inclusive.
B – Used on PA-22 with serial numbers 22-2378, 22-2425 to 22-3217
inclusive and 22-3219 to 22-3386 inclusive.
C – Not used on PA-22-108.

161
