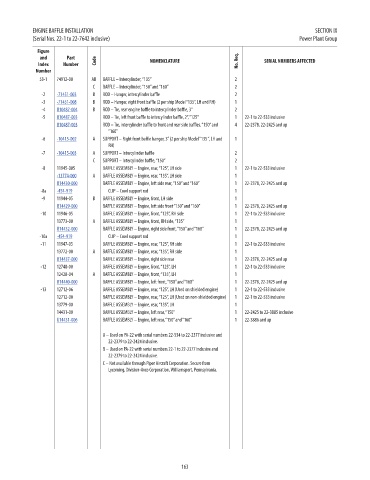

ENGINE BAFFLE INSTALLATION SECTION IX
(Serial Nos. 22-1 to 22-7642 inclusive) Power Plant Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
53-1 74912-00 AB BAFFLE – Intercylinder, “135” 2 NM!
C BAFFLE – Intercylinder, “150” and “160” 2 X
-2 -71451-003 B ROD – Hanger, intercylinder baffle 2 55.44
-3 -71451-008 B ROD – Hanger, right front baffle (2 per ship Model “135”, LH and RH) 1 5.16
-4 U10487-004 B ROD – Tie, rear engine baffle to intercylinder baffle, 3” 2 24.87
-5 U10487-003 ROD – Tie, left front baffle to intercylinder baffle, 2”, “125” 1 22-1 to 22-533 inclusive 26.6
U10487-003 ROD – Tie, intercylinder baffle to front and rear side baffles, “150” and 4 22-2378, 22-2425 and up 26.6
“160”
-6 -10415-002 A SUPPORT – Right front baffle hanger, 3” (2 per ship Model “135 “, LH and 1 34.26
RH)
-7 -10415-003 A SUPPORT – Intercylinder baffle 2 38.75
C SUPPORT – Intercylinder baffle, “150” 2 X
-8 11945-005 BAFFLE ASSEMBLY – Engine, rear, “125”, LH side 1 22-1 to 22-533 inclusive NM!
-13774-000 A BAFFLE ASSEMBLY – Engine, rear, “135”, LH side 1 143.31
U14430-000 BAFFLE ASSEMBLY – Engine, left side rear, “150” and “160” 1 22-2378, 22-2425 and up 198.61
-8a -454-919 CLIP – Cowl support rod 1 0.93
-9 11944-05 B BAFFLE ASSEMBLY – Engine, front, LH side 1 NM!
U14429-000 BAFFLE ASSEMBLY – Engine, left side front “150” and “160” 1 22-2378, 22-2425 and up 230.19
-10 11946-05 BAFFLE ASSEMBLY – Engine, front, “125”, RH side 1 22-1 to 22-533 inclusive NM!
13773-00 A BAFFLE ASSEMBLY – Engine, front, RH side, “135” 1 NM!
U14432-000 BAFFLE ASSEMBLY – Engine, right side front, “150” and “160” 1 22-2378, 22-2425 and up 218.4
-10a -454-919 CLIP – Cowl support rod 1 0.93
-11 11947-05 BAFFLE ASSEMBLY – Engine, rear, “125”, RH side 1 22-1 to 22-533 inclusive NM!
13772-00 A BAFFLE ASSEMBLY – Engine, rear, “135”, RH side 1 NM!
U14437-000 BAFFLE ASSEMBLY – Engine, right side rear 1 22-2378, 22-2425 and up 161.36
-12 12748-00 BAFFLE ASSEMBLY – Engine, front, “125”, LH 1 22-1 to 22-533 inclusive NM!
12428-04 A BAFFLE ASSEMBLY – Engine, front, “135”, LH 1 NM!
U14440-000 BAFFLE ASSEMBLY – Engine, left front, “150” and “160” 1 22-2378, 22-2425 and up 255.06
-13 12712-06 BAFFLE ASSEMBLY – Engine, rear, “125”, LH (Used on shielded engine) 1 22-1 to 22-533 inclusive NM!
12712-00 BAFFLE ASSEMBLY – Engine, rear, “125”, LH (Used on non-shielded engine) 1 22-1 to 22-533 inclusive NM!
13779-00 BAFFLE ASSEMBLY – Engine, rear, “135”, LH 1 NM!
14431-00 BAFFLE ASSEMBLY – Engine, left rear, “150” 1 22-2425 to 22-3885 inclusive NM!
U14431-006 BAFFLE ASSEMBLY – Engine, left rear, “150” and “160” 1 22-3886 and up 547.28

A – Used on PA-22 with serial numbers 22-S34 to 22-2377 inclusive and
22-2379 to 22-2424 inclusive.
B – Used on PA-22 with serial numbers 22-1 to 22-2377 inclusive and
22-2379 to 22-2424 inclusive.
C – Not available through Piper Aircraft Corporation. Secure from
Lycoming, Division-Avco Corporation, Williamsport, Pennsylvania.

163
