P. 179

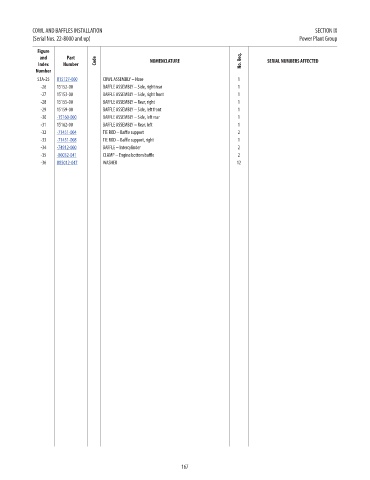

COWL AND BAFFLES INSTALLATION                                                                SECTION IX
            (Serial Nos. 22-8000 and up)                                                            Power Plant Group

             Figure
              and      Part
              Index   Number     Code              NOMENCLATURE                  No. Req.  SERIAL NUMBERS AFFECTED                PRICE
             Number
             53A-25  U15127-000    COWL ASSEMBLY – Nose                         1                                                 1660.13
              -26   15152-00       BAFFLE ASSEMBLY – Side, right rear           1                                                 NM!
              -27   15153-00       BAFFLE ASSEMBLY – Side, right front          1                                                 NM!
              -28   15155-00       BAFFLE ASSEMBLY – Rear, right                1                                                 NM!
              -29   15159-00       BAFFLE ASSEMBLY – Side, left front           1                                                 NM!
              -30   -15160-000     BAFFLE ASSEMBLY – Side, left rear            1                                                 164.34
              -31   15162-00       BAFFLE ASSEMBLY – Rear, left                 1                                                 NM!
              -32   -71451-004     TIE ROD – Baffle support                     2                                                 21.28
              -33   -71451-008     TIE ROD – Baffle support, right              1                                                 5.16
              -34   -74912-000     BAFFLE – Intercylinder                       2                                                 44.85
              -35   -80032-041     CLAMP – Engine bottom baffle                 2                                                 15.62
              -36   U85012-047     WASHER                                      12                                                 0.83





























































                                                             167
