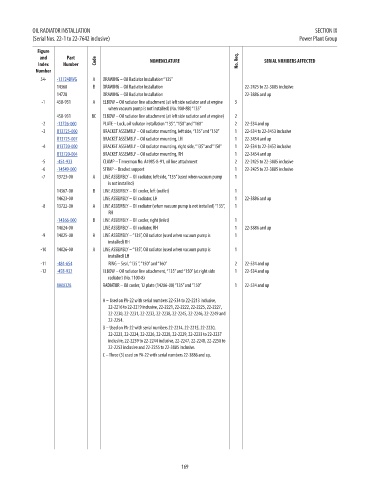

OIL RADIATOR INSTALLATION                                                                    SECTION IX
            (Serial Nos. 22-1 to 22-7642 inclusive)                                                 Power Plant Group

             Figure
              and      Part
              Index   Number     Code              NOMENCLATURE                 No. Req.  SERIAL NUMBERS AFFECTED                 PRICE
             Number
              54-   -13724DWG   A  DRAWING – Oil Radiator Installation “135”                                                      65.97
                    14368       B  DRAWING – Oil Radiator Installation            22-2425 to 22-3885 inclusive                    NM!
                    14728          DRAWING – Oil Radiator Installation            22-3886 and up                                  NM!
               -1   458-931     A  ELBOW – Oil radiator line attachment (at left side radiator and at engine   3                  NM!
                                     when vacuum pump is not installed) (No. 900-8B) “135”
                    458-931    BC  ELBOW – Oil radiator line attachment (at left side radiator and at engine)   2                 NM!
               -2   -13726-000     PLATE – Lock, oil radiator installation “135 “, “150” and “160”  2  22-534 and up              6.4
               -3   U13725-000     BRACKET ASSEMBLY – Oil radiator mounting, left side, “135” and “150”  1  22-534 to 22-3453 inclusive  579.83
                    U13725-007     BRACKET ASSEMBLY – Oil radiator mounting, LH  1  22-3454 and up                                593.69
               -4   U13720-000     BRACKET ASSEMBLY – Oil radiator mounting, right side, “135” and “150”  1  22-534 to 22-3453 inclusive  355.3
                    U13720-004     BRACKET ASSEMBLY – Oil radiator mounting, RH  1  22-3454 and up                                301.38
               -5   -454-933       CLAMP – Tinnerman No. A498S-8-91, oil line attachment  2  22-2425 to 22-3885 inclusive         1.05
               -6   -14549-000     STRAP – Bracket support                     1  22-2425 to 22-3885 inclusive                    88.04
               -7   13723-00    A  LINE ASSEMBLY – Oil radiator, left side, “135” (used when vacuum pump   1                      NM!
                                     is not installed)
                    14367-00    B  LINE ASSEMBLY – Oil cooler, left (outlet)   1                                                  NM!
                    14623-00       LINE ASSEMBLY – Oil radiator, LH            1  22-3886 and up                                  NM!
               -8   13722-00    A  LINE ASSEMBLY – Oil radiator (when vacuum pump is not installed) “135”,   1                    NM!
                                     RH
                    -14366-000  B  LINE ASSEMBLY – Oil cooler, right (inlet)   1                                                  400.56
                    14624-00       LINE ASSEMBLY – Oil radiator, RH            1  22-3886 and up                                  NM!
               -9   14025-00    A  LINE ASSEMBLY – “135”, Oil radiator (used when vacuum pump is   1                              NM!
                                     installed) RH
              -10   14026-00    A  LINE ASSEMBLY – “135”, Oil radiator (used when vacuum pump is   1                              NM!
                                     installed) LH
              -11   -484-654         RING – Seal, “135 “, “150” and “160”      2  22-534 and up                                   2.45
              -12   -458-932       ELBOW – Oil radiator line attachment, “135” and “150” (at right side   1  22-534 and up        14.44
                                     radiator) (No. 1100-8)
                    8000328        RADIATOR – Oil cooler, 12 plate (14206-00) “135” and “150”  1  22-534 and up                   756

                                   A – Used on PA-22 with serial numbers 22-534 to 22-2213 inclusive,
                                     22-2216 to 22-2219 inclusive, 22-2221, 22-2222, 22-2225, 22-2227,
                                     22-2230, 22-2231, 22-2232, 22-2238, 22-2245, 22-2246, 22-2249 and
                                     22-2254.
                                   B – Used on PA-22 with serial numbers 22-2214, 22-2215, 22-2220,
                                     22-2223, 22-2224, 22-2226, 22-2228, 22-2229, 22-2233 to 22-2237
                                     inclusive, 22-2239 to 22-2244 inclusive, 22-2247, 22-2248, 22-2250 to
                                     22-2253 inclusive and 22-2255 to 22-3885 inclusive.
                                   C – Three (3) used on PA-22 with serial numbers 22-3886 and up.
