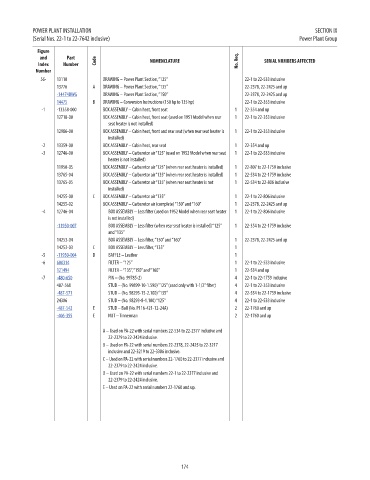

Page 186 - Piper PA-22 Tri-Pacer Interactive Digital Parts Catalog

POWER PLANT INSTALLATION SECTION IX
(Serial Nos. 22-1 to 22-7642 inclusive) Power Plant Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
56- 13110 DRAWING – Power Plant Section, “125” 22-1 to 22-533 inclusive NM!
13776 A DRAWING – Power Plant Section, “135” 22-2378, 22-2425 and up NM!
-14474DWG DRAWING – Power Plant Section, “150” 22-2378, 22-2425 and up 65.97
14475 B DRAWING – Conversion Instructions (150 hp to 135 hp) 22-1 to 22-353 inclusive 16.61
-1 -13358-000 BOX ASSEMBLY – Cabin heat, front seat 1 22-354 and up NM!
12718-00 BOX ASSEMBLY – Cabin heat, front seat (used on 1951 Model when rear 1 22-1 to 22-353 inclusive NM!
seat heater is not installed)
12986-00 BOX ASSEMBLY – Cabin heat, front and rear seat (when rear seat heater is 1 22-1 to 22-353 inclusive NM!
installed)
-2 13359-00 BOX ASSEMBLY – Cabin heat, rear seat 1 22-354 and up NM!
-3 12746-00 BOX ASSEMBLY – Carburetor air “125” (used on 1952 Model when rear seat 1 22-1 to 22-533 inclusive NM!
heater is not installed)
11950-05 BOX ASSEMBLY – Carburetor air “125” (when rear seat heater is installed) 1 22-807 to 22-1759 inclusive NM!
13765-04 BOX ASSEMBLY – Carburetor air “135” (when rear seat heater is installed) 1 22-534 to 22-1759 inclusive NM!
13765-05 BOX ASSEMBLY – Carburetor air “135” (when rear seat heater is not 1 22-534 to 22-806 inclusive NM!
installed)
14255-00 C BOX ASSEMBLY – Carburetor air “135” 1 22-1 to 22-806 inclusive NM!
14255-02 BOX ASSEMBLY – Carburetor air (complete) “150” and “160” 1 22-2378, 22-2425 and up NM!
-4 12746-04 BOX ASSEMBLY – Less filter (used on 1952 Model when rear seat heater 1 22-1 to 22-806 inclusive NM!
is not installed)
-11950-007 BOX ASSEMBLY – Less filter (when rear seat heater is installed) “125” 1 22-354 to 22-1759 inclusive 987.21
and “135”
14253-04 BOX ASSEMBLY – Less filter, “150” and “160” 1 22-2378, 22-2425 and up NM!
14253-03 C BOX ASSEMBLY – Less filter, “135” 1 NM!
-5 -11950-004 D BAFFLE – Leather 1 15.92
-6 600314 FILTER – “125” 1 22-1 to 22-533 inclusive 99.76
121494 FILTER – “135”, “150” and “160” 1 22-534 and up 177.11
-7 -480-650 PIN – (No. 99785-2) 4 22-1 to 22-1759 inclusive 2.19
487-568 STUD – (No. 99899-10-1.590) “125” (used only with 1-1/2” filter) 4 22-1 to 22-353 inclusive NM!
-487-571 STUD – (No. 98293-15-2.100) “135” 4 22-534 to 22-1759 inclusive 16.45
24306 STUD – (No. 98293-8-1.100) “125” 4 22-1 to 22-533 inclusive NM!
-487-542 E STUD – Ball (No. P116-421-12-24A) 2 22-1760 and up 2.7
-406-355 E NUT – Tinnerman 2 22-1760 and up 4.04

A – Used on PA-22 with serial numbers 22-534 to 22-2377 inclusive and
22-2379 to 22-2424 inclusive.
B – Used on PA-22 with serial numbers 22-2378, 22-2425 to 22-3217
inclusive and 22-3219 to 22-3386 inclusive.
C – Used on PA-22 with serial numbers 22-1760 to 22-2377 inclusive and
22-2379 to 22-2424 inclusive.
D – Used on PA-22 with serial numbers 22-1 to 22-2377 inclusive and
22-2379 to 22-2424 inclusive.
E – Used on PA-22 with serial numbers 22-1760 and up.

174
