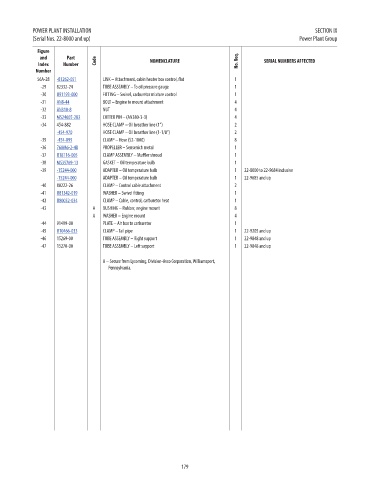

P. 191

POWER PLANT INSTALLATION                                                                     SECTION IX
            (Serial Nos. 22-8000 and up)                                                            Power Plant Group

             Figure
              and      Part
              Index   Number     Code              NOMENCLATURE                 No. Req.  SERIAL NUMBERS AFFECTED                 PRICE
             Number
             56A-28  -81262-051    LINK – Attachment, cabin heater box control, flat  1                                           31.04
              -29   82332-24       TUBE ASSEMBLY – To oil pressure gauge       1                                                  NM!
              -30   U91193-000     FITTING – Swivel, carburetor mixture control  1                                                20.67
              -31   AN8-44         BOLT – Engine to mount attachment           4                                                  8.6
              -32   AN310-8        NUT                                         4                                                  3.9
              -33   MS24665-283    COTTER PIN – (AN380-3-3)                    4                                                  0.04
              -34   454-882        HOSE CLAMP – Oil breather line (1”)         2                                                  NM!
                    -454-970       HOSE CLAMP – Oil breather line (1-1/8”)     2                                                  2.56
              -35   -454-895       CLAMP – Hose (S2-1800)                      8                                                  1.1
              -36   76AM6-2-48     PROPELLER – Sensenich metal                 1                                                  5640.5
              -37   U18116-005     CLAMP ASSEMBLY – Muffler shroud             1                                                  213.77
              -38   MS35769-13     GASKET – Oil temperature bulb               1                                                  2.94
              -39   -15244-000     ADAPTER – Oil temperature bulb              1  22-8000 to 22-9684 inclusive                    55.81
                    -15244-000     ADAPTER – Oil temperature bulb              1  22-9685 and up                                  55.81
              -40   80222-26       CLAMP – Control cable attachment            2                                                  NM!
              -41   U81342-019     WASHER – Swivel fitting                     1                                                  4.2
              -42   U80032-034     CLAMP – Cable, control, carburetor heat     1                                                  25.91
              -43               A   BUSHING – Rubber, engine mount             8                                                  X
                                A   WASHER – Engine mount                      4                                                  X
              -44   91499-00       PLATE – Air box to carburetor               1                                                  NM!
              -45   U10466-033     CLAMP – Tail pipe                           1  22-9205 and up                                  35.49
              -46   15269-00       TUBE ASSEMBLY – Right support               1  22-9848 and up                                  NM!
              -47   15270-00       TUBE ASSEMBLY – Left support                1  22-9848 and up                                  NM!

                                   A – Secure from Lycoming, Division-Avco Corporation, Williamsport,
                                     Pennsylvania.








































                                                             179
