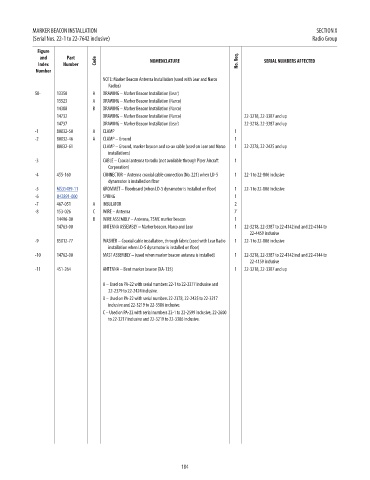

MARKER BEACON INSTALLATION                                                                    SECTION X
            (Serial Nos. 22-1 to 22-7642 inclusive)                                                     Radio Group

             Figure
              and      Part
              Index   Number     Code              NOMENCLATURE                 No. Req.  SERIAL NUMBERS AFFECTED                 PRICE
             Number
                                   NOTE: Marker Beacon Antenna Installation (used with Lear and Narco                             X
                                     Radios)
             58-    13350       A  DRAWING – Marker Beacon Installation (Lear)                                                    NM!
                    13523       A  DRAWING – Marker Beacon Installation (Narco)                                                   NM!
                    14388       B  DRAWING – Marker Beacon Installation (Narco)                                                   NM!
                    14732          DRAWING – Marker Beacon Installation (Narco)   22-3218, 22-3387 and up                         7.61
                    14737          DRAWING – Marker Beacon Installation (Lear)    22-3218, 22-3387 and up                         NM!
             -1     80032-50    A  CLAMP                                       1                                                  NM!
             -2     80032-46    A  CLAMP – Ground                              1                                                  NM!
                    80032-61       CLAMP – Ground, marker beacon and co-ax cable (used on Lear and Narco   1  22-2378, 22-2425 and up  NM!
                                     installations)
             -3                    CABLE – Coaxial antenna to radio (not available through Piper Aircraft   1                     X
                                     Corporation)
             -4     455-160        CONNECTOR – Antenna coaxial cable connection (No. 221) when LD-5   1  22-1 to 22-806 inclusive  NM!
                                     dynamotor is installed on floor
             -5     MS35489-11     GROMMET – Floorboard (when LD-5 dynamotor is installed on floor)  1  22-1 to 22-806 inclusive  0.6
             -6     U42891-000     SPRING                                      1                                                  7.53
             -7     467-051     A  INSULATOR                                   2                                                  NM!
             -8     153-026     C  WIRE – Antenna                              7’                                                 NM!
                    14496-00    B  WIRE ASSEMBLY – Antenna, 75MC marker beacon  1                                                 NM!
                    14763-00       ANTENNA ASSEMBLY – Marker beacon, Narco and Lear  1  22-3218, 22-3387 to 22-4142 incl and 22-4144 to   NM!
                                                                                    22-4459 inclusive
             -9     85012-77       WASHER – Coaxial cable installation, through fabric (used with Lear Radio   1  22-1 to 22-806 inclusive  NM!
                                     installation when LD-5 dynamotor is installed on floor)
             -10    14762-00       MAST ASSEMBLY – (used when marker beacon antenna is installed)  1  22-3218, 22-3387 to 22-4142 incl and 22-4144 to   NM!
                                                                                    22-4159 inclusive
             -11    451-264        ANTENNA – Bent marker beacon (XA-135)       1  22-3218, 22-3387 and up                         NM!
                                                                                                                                  X
                                   A – Used on PA-22 with serial numbers 22-1 to 22-2377 inclusive and                            X
                                     22-2379 to 22-2424 inclusive.
                                   B – Used on PA-22 with serial numbers 22-2378, 22-2425 to 22-3217                              X
                                     inclusive and 22-3219 to 22-3386 inclusive.
                                   C – Used on PA-22 with serial numbers 22-1 to 22-2599 inclusive, 22-2600                       X
                                     to 22-3217 inclusive and 22-3219 to 22-3386 inclusive.
                                                                                                                                  X



























                                                             184
