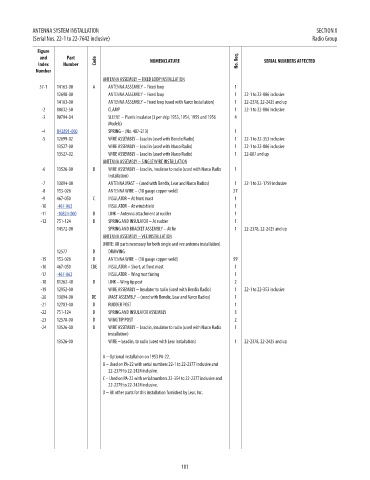

ANTENNA SYSTEM INSTALLATION                                                                   SECTION X
            (Serial Nos. 22-1 to 22-7642 inclusive)                                                     Radio Group

             Figure
              and      Part
              Index   Number     Code              NOMENCLATURE                 No. Req.  SERIAL NUMBERS AFFECTED                 PRICE
             Number
                                   ANTENNA ASSEMBLY – FIXED LOOP INSTALLATION                                                     X
              57-1  14163-00    A    ANTENNA ASSEMBLY – Fixed loop             1                                                  NM!
                    12698-00         ANTENNA ASSEMBLY – Fixed loop             1  22-1 to 22-806 inclusive                        NM!
                    14163-00         ANTENNA ASSEMBLY – Fixed loop (used with Narco Installation)  1  22-2378, 22-2425 and up     NM!
               -2   80032-50         CLAMP                                     1  22-1 to 22-806 inclusive                        NM!
               -3   90794-04         SLEEVE – Plastic insulator (3 per ship 1953, 1954, 1955 and 1956   4                         NM!
                                     Models)
               -4   U42891-000       SPRING – (No. 487-213)                    1                                                  7.53
               -5   12699-02         WIRE ASSEMBLY – Lead in (used with Bendix Radio)  1  22-1 to 22-353 inclusive                NM!
                    13527-00         WIRE ASSEMBLY – Lead in (used with Narco Radio)  1  22-1 to 22-806 inclusive                 NM!
                    13527-02         WIRE ASSEMBLY – Lead in (used with Narco Radio)  1  22-807 and up                            NM!
                                   ANTENNA ASSEMBLY – SINGLE WIRE INSTALLATION                                                    X
               -6   13526-00    B    WIRE ASSEMBLY – Lead in, insulator to radio (used with Narco Radio   1                       NM!
                                     Installation)
               -7   13094-00         ANTENNA MAST – (used with Bendix, Lear and Narco Radios)  1  22-1 to 22-1759 inclusive       NM!
               -8   153-026          ANTENNA WIRE – (18 gauge copper weld)    21’                                                 NM!
               -9   467-050     C    INSULATOR – At front mast                 1                                                  NM!
              -10   -467-062         INSULATOR – At windshield                 1                                                  3.82
              -11   -10824-000  B    LINK – Antenna attachment at rudder       1                                                  8.33
              -12   751-124     B    SPRING AND INSULATOR – At rudder          1                                                  NM!
                    14572-00         SPRING AND BRACKET ASSEMBLY – At fin      1  22-2378, 22-2425 and up                         NM!
                                   ANTENNA ASSEMBLY – VEE INSTALLATION                                                            X
                                   (NOTE: All parts necessary for both single and vee antenna installation)                       X
                    12577       D    DRAWING                                                                                      NM!
              -15   153-026     D    ANTENNA WIRE – (18 gauge copper weld)    59’                                                 NM!
              -16   467-050    CDE    INSULATOR – Short, at front mast         1                                                  NM!
              -17   -467-062         INSULATOR – Wing root fairing             1                                                  3.82
              -18   81262-48    D    LINK – Wing tip post                      2                                                  NM!
              -19   12952-00         WIRE ASSEMBLY – Insulator to radio (used with Bendix Radio)  1  22-1 to 22-353 inclusive     NM!
              -20   13094-00   DE    MAST ASSEMBLY – (used with Bendix, Lear and Narco Radios)  1                                 NM!
              -21   12703-00    D    RUDDER POST                               1                                                  NM!
              -22   751-124     D    SPRING AND INSULATOR ASSEMBLY             3                                                  NM!
              -23   12578-00    D    WING TIP POST                             2                                                  NM!
              -24   13526-00    D    WIRE ASSEMBLY – Lead in, insulator to radio (used with Narco Radio   1                       NM!
                                     installation)
                    13526-00         WIRE – Lead in, to radio (used with Lear installation)  1  22-2378, 22-2425 and up           NM!
                                                                                                                                  X
                                   A – Optional installation on 1953 PA-22.
                                   B – Used on PA-22 with serial numbers 22-1 to 22-2377 inclusive and
                                     22-2379 to 22-2424 inclusive.
                                   C – Used on PA-22 with serial numbers 22-354 to 22-2377 inclusive and
                                     22-2379 to 22-2424 inclusive.
                                   D – All other parts for this installation furnished by Lear, lnc.
