P. 194

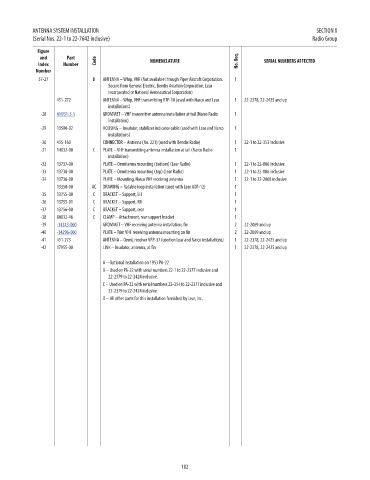

ANTENNA SYSTEM INSTALLATION                                                                   SECTION X
            (Serial Nos. 22-1 to 22-7642 inclusive)                                                     Radio Group

             Figure
              and      Part
              Index   Number     Code              NOMENCLATURE                 No. Req.  SERIAL NUMBERS AFFECTED                 PRICE
             Number
              57-27             B  ANTENNA – Whip, VHF (Not available through Piper Aircraft Corporation.   1                     X
                                     Secure from General Electric, Bendix Aviation Corporation, Lear
                                     Incorporated or National Aeronautical Corporation)
                    451-272        ANTENNA – Whip, VHF transmitting VTP-10 (used with Narco and Lear   1  22-2378, 22-2425 and up  NM!
                                     installations)
              -28   AN931-3-5      GROMMET – VHF transmitter antenna installation at tail (Narco Radio   1                        1.46
                                     Installation)
              -29   13590-02       HOUSING – Insulator, stabilizer indicator cable (used with Lear and Narco   1                  NM!
                                     installations)
              -30   455-160        CONNECTOR – Antenna (No. 221) (used with Bendix Radio)  1  22-1 to 22-353 inclusive            NM!
              -31   14032-00    C  PLATE – VHF transmitting antenna installation at tail (Narco Radio   1                         NM!
                                     installation)
              -32   13737-00       PLATE – Omnitenna mounting (bottom) (Lear Radio)  1  22-1 to 22-806 inclusive                  NM!
              -33   13738-00       PLATE – Omnitenna mounting (top) (Lear Radio)  1  22-1 to 22-806 inclusive                     NM!
              -34   13736-00       PLATE – Mounting, Narco VHF receiving antenna  1  22-1 to 22-2068 inclusive                    NM!
                    13350-00   AC  DRAWING – Ratable loop installation (used with Lear ADF-12)  1                                 NM!
              -35   13755-00    C  BRACKET – Support, LH                       1                                                  NM!
              -36   13755-01    C  BRACKET – Support, RH                       1                                                  NM!
              -37   13756-00    C  BRACKET – Support, rear                     1                                                  NM!
              -38   80032-46    C  CLAMP – Attachment, rear support bracket    1                                                  NM!
              -39   -14313-000     GROMMET – VHF receiving antenna installation, fin  2  22-2069 and up                           16.73
              -40   -14296-000     PLATE – Trim VHF receiving antenna mounting on fin  2  22-2069 and up                          10.05
              -41   451-273        ANTENNA – Omni, receiver VRP-37 (used on Lear and Narco installations)  1  22-2378, 22-2425 and up  NM!
              -42   17955-00       LINK – Insulator, antenna, at fin           1  22-2378, 22-2425 and up                         NM!


                                   A – Optional installation on 1953 PA-22.
                                   B – Used on PA-22 with serial numbers 22-1 to 22-2377 inclusive and
                                     22-2379 to 22-2424 inclusive.
                                   C – Used on PA-22 with serial numbers 22-354 to 22-2377 inclusive and
                                     22-2379 to 22-2424 inclusive.
                                   D – All other parts for this installation furnished by Lear, Inc.

































                                                             182
