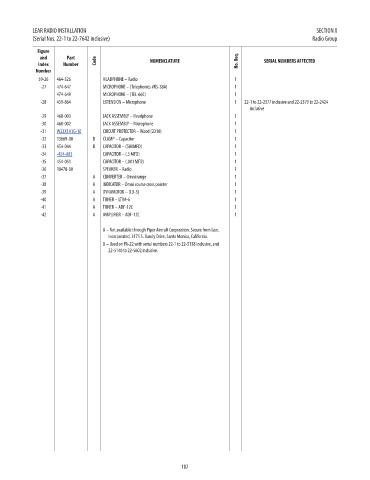

LEAR RADIO INSTALLATION                                                                       SECTION X
            (Serial Nos. 22-1 to 22-7642 inclusive)                                                     Radio Group

             Figure
              and      Part
              Index   Number     Code              NOMENCLATURE                 No. Req.  SERIAL NUMBERS AFFECTED                 PRICE
             Number
              59-26  464-326       HEADPHONE – Radio                           1                                                  NM!
              -27   474-647        MICROPHONE – (Telephonics #RS-38A)          1                                                  NM!
                    474-649        MICROPHONE – (TEL-66C)                      1                                                  NM!
              -28   459-864        EXTENSION – Microphone                      1  22-1 to 22-2377 inclusive and 22-2379 to 22-2424   NM!
                                                                                    inclusive
              -29   468-003        JACK ASSEMBLY – Headphone                   1                                                  NM!
              -30   468-002        JACK ASSEMBLY – Microphone                  1                                                  NM!
              -31   W23X1A1G-10    CIRCUIT PROTECTOR – Wood (2310)             1                                                  48.4
              -32   13669-00    B  CLAMP – Capacitor                           1                                                  NM!
              -33   454-044     B  CAPACITOR – (500MFD)                        1                                                  NM!
              -34   -454-083       CAPACITOR – (.5 MFD)                        1                                                  63.17
              -35   454-051        CAPACITOR – (.001 MFD)                      1                                                  NM!
              -36   18478-00       SPEAKER – Radio                             1                                                  NM!
              -37               A  CONVERTER – Omni range                      1
              -38               A  INDICATOR – Omni course cross pointer       1
              -39               A  DYNAMOTOR – (LD-5)                          1
              -40               A  TUNER – LTRA-6                              1
              -41               A  TUNER – ADF-12C                             1
              -42               A  AMPLIFIER – ADF-12C                         1

                                   A – Not available through Piper Aircraft Corporation. Secure from Lear,
                                     Incorporated, 3171 S. Bundy Drive, Santa Monica, California.
                                   B – Used on PA-22 with serial numbers 22-1 to 22-5138 inclusive, and
                                     22-5140 to 22-5602 inclusive.











































                                                             187
