P. 204

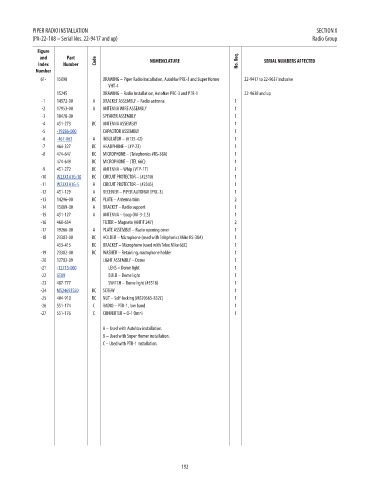

PIPER RADIO INSTALLATION                                                                      SECTION X
            (PA-22-108 – Serial Nos. 22-9417 and up)                                                    Radio Group

             Figure
              and      Part
              Index   Number     Code              NOMENCLATURE                 No. Req.  SERIAL NUMBERS AFFECTED                 PRICE
             Number
              61-   15090          DRAWING – Piper Radio Installation, AutoNav PRC-3 and Super Homer   22-9417 to 22-9637 inclusive  NM!
                                     VHT-4
                    15245          DRAWING – Radio Installation, AutoNav PRC-3 and PTR-1  22-9638 and up                          NM!
               -1   14572-00    A  BRACKET ASSEMBLY – Radio antenna            1                                                  NM!
               -2   17953-00    A  ANTENNA WIRE ASSEMBLY                       1                                                  NM!
               -3   18478-00       SPEAKER ASSEMBLY                            1                                                  NM!
               -4   451-273    BC  ANTENNA ASSEMBLY                            1                                                  NM!
               -5   -19286-000     CAPACITOR ASSEMBLY                          1                                                  34.88
               -6   -467-062    A  INSULATOR – (#135-42)                       1                                                  3.82
               -7   464-327    BC  HEADPHONE – (#P-23)                         1                                                  NM!
               -8   474-647    BC  MICROPHONE – (Telephonics #RS-38A)          1                                                  NM!
                    474-649    BC  MICROPHONE – (TEL 66C)                      1                                                  NM!
               -9   451-272    BC  ANTENNA – Whip (VTP-17)                     1                                                  NM!
              -10   W23X1A1G-10  BC  CIRCUIT PROTECTOR – (#2310)               1                                                  48.4
              -11   W23X1A1G-5  A  CIRCUIT PROTECTOR – (#2305)                 1                                                  43.12
              -12   451-129     A  RECEIVER – PIPER AUTONAV (PRC-3)            1                                                  NM!
              -13   14296-00   BC  PLATE – Antenna trim                        2                                                  NM!
              -14   15089-00    A  BRACKET – Radio support                     1                                                  NM!
              -15   451-127     A  ANTENNA – Loop (#A-3-2.5)                   1                                                  NM!
              -16   460-634        FILTER – Magneto (#NFIF 247)                2                                                  NM!
              -17   19266-00    A  PLATE ASSEMBLY – Radio opening cover        1                                                  NM!
              -18   23303-00   BC  HOLDER – Microphone (used with Telephonics Mike RS-38A)  1                                     NM!
                    453-415    BC  BRACKET – Microphone (used with Telex Mike 66C)  1                                             NM!
              -19   23302-00   BC  WASHER – Retaining, microphone holder       1                                                  NM!
              -20   12702-09       LIGHT ASSEMBLY – Dome                       1                                                  NM!
              -21   -12715-000       LENS – Dome light                         1                                                  158.22
              -22   GE89             BULB – Dome light                         1                                                  2.42
              -23   487-777          SWITCH – Dome light (#5518)               1                                                  NM!
              -24   MS24693S50  BC  SCREW                                      1                                                  0.12
              -25   404-910    BC  NUT – Self-locking (MS20365-832C)           1                                                  NM!
              -26   551-174     C  RADIO – PTR-1, low band                     1                                                  NM!
              -27   551-176     C  CONVERTER – O-1 Omni                        1                                                  NM!

                                   A – Used with AutoNav installation.
                                   B – Used with Super Homer installation.
                                   C – Used with PTR-1 installation.
























                                                             192
