P. 201

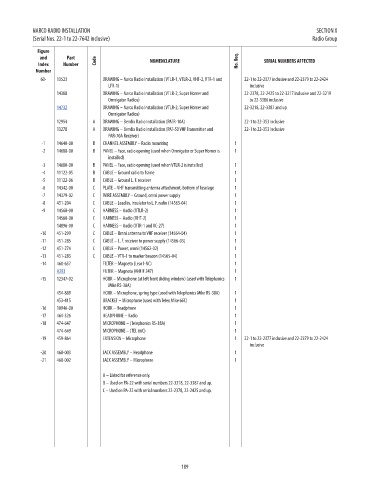

NARCO RADIO INSTALLATION                                                                      SECTION X
            (Serial Nos. 22-1 to 22-7642 inclusive)                                                     Radio Group

             Figure
              and      Part
              Index   Number     Code              NOMENCLATURE                 No. Req.  SERIAL NUMBERS AFFECTED                 PRICE
             Number
              60-   13523          DRAWING – Narco Radio Installation (VTLR-1, VTLR-2, VHT-2, VTR-1 and   22-1 to 22-2377 inclusive and 22-2379 to 22-2424   NM!
                                     LFR-1)                                         inclusive
                    14388          DRAWING – Narco Radio Installation (VTLR-2, Super Homer and   22-2378, 22-2425 to 22-3217 inclusive and 22-3219   NM!
                                     Omnigator Radios)                              to 22-3386 inclusive
                    14732          DRAWING – Narco Radio Installation (VTLR-2, Super Homer and   22-3218, 22-3387 and up          7.61
                                     Omnigator Radios)
                    12954       A  DRAWING – Bendix Radio Installation (PATR-10A)  22-1 to 22-353 inclusive                       NM!
                    13278       A  DRAWING – Bendix Radio Installation (PAT-50 VHF Transmitter and    22-1 to 22-353 inclusive    NM!
                                     PAR-70A Receiver)
               -1   14640-00    B  CHANNEL ASSEMBLY – Radio mounting           1                                                  NM!
               -2   14688-00    B  PANEL – Face, radio opening (used when Omnigator or Super Homer is   1                         NM!
                                     installed)
               -3   14680-00    B  PANEL – Face, radio opening (used when VTLR-2 is installed)  1                                 NM!
               -4   11122-05    B  CABLE – Ground radio to frame               1                                                  NM!
               -5   11122-06    B  CABLE – Ground L. F. receiver               1                                                  NM!
               -6   14342-00    C  PLATE – VHF transmitting antenna attachment, bottom of fuselage  1                             NM!
               -7   14379-02    C  WIRE ASSEMBLY – Ground, omni power supply   1                                                  NM!
               -8   451-204     C  CABLE – Lead in, insulator to L. F. radio (14563-04)  1                                        NM!
               -9   14568-00    C  HARNESS – Audio (VTLR-2)                    1                                                  NM!
                    14560-00    C  HARNESS – Audio (VHT-2)                     1                                                  NM!
                    14896-00    C  HARNESS – Audio (VTR-1 and VC-27)           1                                                  NM!
              -10   451-299     C  CABLE – Omni antenna to VHF receiver (14564-04)  1                                             NM!
              -11   451-285     C  CABLE – L. F. receiver to power supply (14566-03)  1                                           NM!
              -12   451-274     C  CABLE – Power, omni (14562-02)              1                                                  NM!
              -13   451-283     C  CABLE – VTR-1 to marker beacon (14565-04)   1                                                  NM!
              -14   460-637        FILTER – Magneto (Lear I-NC)                1                                                  NM!
                    A293           FILTER – Magneto (#NFIF 247)                1                                                  190.14
              -15   12347-02       HOOK – Microphone (at left front sliding window) (used with Telephonics   1                    NM!
                                     Mike RS-38A)
                    454-889        HOOK – Microphone, spring type (used with Telephonics Mike RS-38A)  1                          NM!
                    453-415        BRACKET – Microphone (used with Telex Mike 66C)  1                                             NM!
              -16   10946-00       HOOK – Headphone                            1                                                  NM!
              -17   464-326        HEADPHONE – Radio                           1                                                  NM!
              -18   474-647        MICROPHONE – (Telephonics RS-38A)           1                                                  NM!
                    474-649        MICROPHONE – (TEL 66C)                      1                                                  NM!
              -19   459-864        EXTENSION – Microphone                      1  22-1 to 22-2377 inclusive and 22-2379 to 22-2424   NM!
                                                                                    inclusive
              -20   468-003        JACK ASSEMBLY – Headphone                   1                                                  NM!
              -21   468-002        JACK ASSEMBLY – Microphone                  1                                                  NM!

                                   A – Listed for reference only.
                                   B – Used on PA-22 with serial numbers 22-3218, 22-3387 and up.
                                   C – Used on PA-22 with serial numbers 22-2378, 22-2425 and up.














                                                             189
