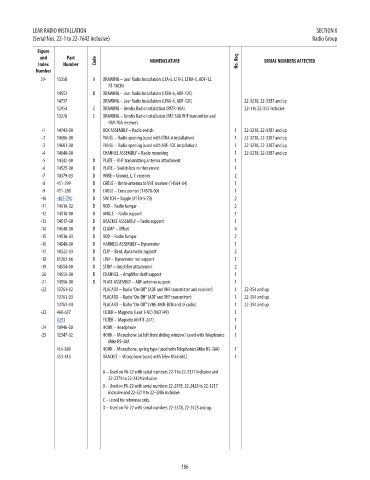

LEAR RADIO INSTALLATION                                                                       SECTION X
            (Serial Nos. 22-1 to 22-7642 inclusive)                                                     Radio Group

             Figure
              and      Part
              Index   Number     Code              NOMENCLATURE                 No. Req.  SERIAL NUMBERS AFFECTED                 PRICE
             Number
              59-   13350       A   DRAWING – Lear Radio Installation (LTA-5, LTR-5, LTRA-5, ADF-12,                              NM!
                                     RT-10CH)
                    14553       B   DRAWING – Lear Radio Installation (LTRA-6, ADF-12C)                                           NM!
                    14737          DRAWING – Lear Radio Installation (LTRA-6, ADF-12C)  22-3218, 22-3387 and up                   NM!
                    12954       C   DRAWING – Bendix Radio Installation (PATR-10A)  22-1 to 22-353 inclusive                      NM!
                    13278       C   DRAWING – Bendix Radio Installation (PAT-50A VHF transmitter and                              NM!
                                     PAR-70A receiver)
               -1   14743-00       BOX ASSEMBLY – Radio switch                 1  22-3218, 22-3387 and up                         NM!
               -2   14686-00       PANEL – Radio opening (used with LTRA-6 installation)  1  22-3218, 22-3387 and up              NM!
               -3   14681-00       PANEL – Radio opening (used with ADF-12C installation)  1  22-3218, 22-3387 and up             NM!
               -4   14640-00       CHANNEL ASSEMBLY – Radio mounting           1  22-3218, 22-3387 and up                         NM!
               -5   14342-00    D   PLATE – VHF transmitting antenna attachment  1                                                NM!
               -6   14525-00    D   PLATE – Switch box reinforcement           1                                                  NM!
               -7   14379-03    D   WIRE – Ground, L. F. receiver              2                                                  NM!
               -8   451-299     D   CABLE – Omni-antenna to VHF receiver (14564-04)  1                                            NM!
               -9   451-288     D   CABLE – Cross pointer (14578-00)           1                                                  NM!
              -10   -487-790    D   SWITCH – Toggle (#110-S-73)                2                                                  20.1
              -11   14516-02    D   ROD – Radio hangar                         2                                                  NM!
              -12   14518-00    D   ANGLE – Radio support                      1                                                  NM!
              -13   14517-00    D   BRACKET ASSEMBLY – Radio support           1                                                  NM!
              -14   14540-00    D   CLAMP – Offset                             4                                                  NM!
              -15   14516-03    D   ROD – Radio hangar                         2                                                  NM!
              -16   14548-00    D   HARNESS ASSEMBLY – Dynamotor               1                                                  NM!
              -17   18522-03    D   CLIP – Bent, dynamotor support             2                                                  NM!
              -18   81262-66    D   LINK – Dynamotor rod support               1                                                  NM!
              -19   14554-00    D   STRIP – Amplifier attachment               2                                                  NM!
              -20   14555-00    D   CHANNEL – Amplifier shelf support          1                                                  NM!
              -21   14556-00    D   PLATE ASSEMBLY – ADF antenna support       1                                                  NM!
              -22   13761-02       PLACARD – Radio “On-Off” (ADF and VHF transmitter and receiver)  1  22-354 and up              NM!
                    13761-03       PLACARD – Radio “On-Off” (ADF and VHF transmitter)  1  22-354 and up                           NM!
                    13761-04       PLACARD – Radio “On-Off” (VHF, MKR-BCN and LF radio)  1  22-354 and up                         NM!
              -23   460-637        FILTER – Magneto (Lear 1-NC) (#63149)       1                                                  NM!
                    A293           FILTER – Magneto (#NFIF-247)                1                                                  190.14
              -24   10946-00       HOOK – Headphone                            1                                                  NM!
              -25   12347-02       HOOK – Microphone (at left front sliding window) (used with Telephonics   1                    NM!
                                     Mike RS-38A
                    454-889        HOOK – Microphone, spring type (used with Telephonics Mike RS-38A)  1                          NM!
                    453-415        BRACKET – Microphone (used with Telex Mike 66C)  1                                             NM!

                                   A – Used on PA-22 with serial numbers 22-1 to 22-2377 inclusive and
                                     22-2379 to 22-2424 inclusive.
                                   B – Used on PA-22 with serial numbers 22-2378, 22-2425 to 22-3217
                                     inclusive and 22-3219 to 22-3386 inclusive.
                                   C – Listed for reference only.
                                   D – Used on PA-22 with serial numbers 22-2378, 22-2425 and up.











                                                             186
