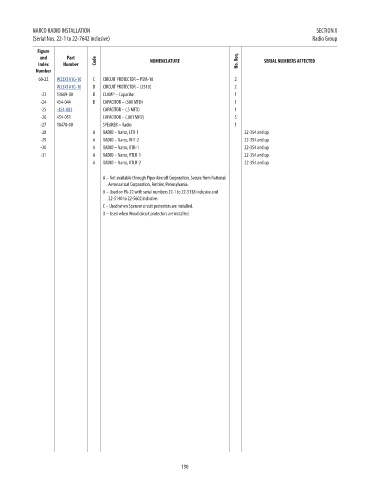

NARCO RADIO INSTALLATION                                                                      SECTION X
            (Serial Nos. 22-1 to 22-7642 inclusive)                                                     Radio Group

             Figure
              and      Part
              Index   Number     Code              NOMENCLATURE                 No. Req.  SERIAL NUMBERS AFFECTED                 PRICE
             Number
              60-22  W23X1A1G-10  C  CIRCUIT PROTECTOR – PSM-10                2                                                  48.4
                    W23X1A1G-10  D  CIRCUIT PROTECTOR – (2310)                 2                                                  48.4
              -23   13669-00    B  CLAMP – Capacitor                           1                                                  NM!
              -24   454-044     B  CAPACITOR – (500 MFD)                       1                                                  NM!
              -25   -454-083       CAPACITOR – (.5 MFD)                        1                                                  63.17
              -26   454-051        CAPACITOR – (.001 MFD)                      5                                                  NM!
              -27   18478-00       SPEAKER – Radio                             1                                                  NM!
              -28               A  RADIO – Narco, LFR-1                           22-354 and up                                   X
              -29               A  RADIO – Narco, VHT-2                           22-354 and up                                   X
              -30               A  RADIO – Narco, VTR-1                           22-354 and up                                   X
              -31               A  RADIO – Narco, VTLR-1                          22-354 and up                                   X
                                A  RADIO – Narco, VTLR-2                          22-354 and up                                   X

                                   A – Not available through Piper Aircraft Corporation. Secure from National
                                     Aeronautical Corporation, Ambler, Pennsylvania.
                                   B – Used on PA-22 with serial numbers 22-1 to 22-5138 inclusive and
                                     22-5140 to 22-5602 inclusive.
                                   C – Used when Spencer circuit protectors are installed.
                                   D – Used when Wood circuit protectors are installed.
