P. 208

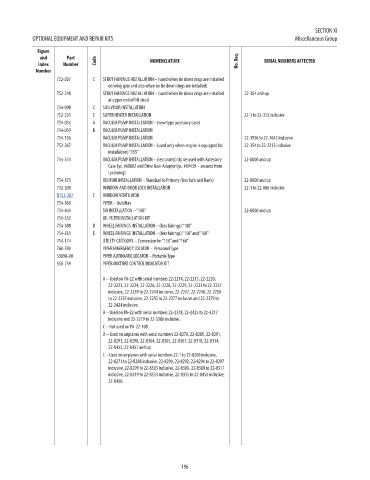

SECTION XI
            OPTIONAL EQUIPMENT AND REPAIR KITS                                                     Miscellaneous Group

             Figure
              and      Part
              Index   Number     Code              NOMENCLATURE                 No. Req.  SERIAL NUMBERS AFFECTED                 PRICE
             Number
                    752-207     C  STRUT FAIRINGS INSTALLATION – (used when tie down rings are installed                          NM!
                                     on wing spar and also when no tie down rings are installed)
                    752-248        STRUT FAIRINGS INSTALLATION – (used when tie down rings are installed   22-354 and up          NM!
                                     at upper end of lift strut)
                    754-098     C  SUN VISOR INSTALLATION                                                                         NM!
                    752-231     C  SUPER HEATER INSTALLATION                      22-1 to 22-353 inclusive                        NM!
                    754-034     A  VACUUM PUMP INSTALLATION – (new type accessory case)                                           NM!
                    754-059     B  VACUUM PUMP INSTALLATION                                                                       NM!
                    754-136        VACUUM PUMP INSTALLATION                       22-3936 to 22-7642 inclusive                    NM!
                    752-267        VACUUM PUMP INSTALLATION – (used only when engine is equipped for   22-354 to 22-2213 inclusive  NM!
                                     installation) “135”
                    754-374        VACUUM PUMP INSTALLATION – (less pump) (to be used with Accessory   22-8000 and up             NM!
                                     Case Lyc. #68802 and Drive Gear Adapter Lyc. #69439 – secured from
                                     Lycoming)
                    754-373        VENTURI INSTALLATION – Standard to Primary (less Turn and Bank)  22-8000 and up                NM!
                    752-208        WINDOW AND DOOR LOCK INSTALLATION              22-1 to 22-806 inclusive                        NM!
                    U752-287    C  WINDOW VENTILATOR                                                                              225.99
                    754-360        PIPER – AutoNav                                                                                NM!
                    754-444        SKI INSTALLATION – “108”                       22-8000 and up                                  NM!
                    754-352        OIL FILTER INSTALLATION KIT                                                                    NM!
                    754-388     D  WHEEL FAIRINGS INSTALLATION – (less fairings) “108”                                            NM!
                    754-331     E  WHEEL FAIRINGS INSTALLATION – (less fairings) “150” and “160”                                  NM!
                    754-174        UTILITY CATEGORY – Conversion for “150” and “160”                                              NM!
                    760-590        PIPER EMERGENCY LOCATOR – Personnel Type                                                       NM!
                    53098-00       PIPER AUTOMATIC LOCATOR – Portable Type                                                        NM!
                    550-759        PIPER MIXTURE CONTROL INDICATOR KIT                                                            NM!

                                   A – Used on PA-22 with serial numbers 22-2214, 22-2215, 22-2220,
                                     22-2223, 22-2224, 22-2226, 22-2228, 22-2229, 22-2233 to 22-2237
                                     inclusive, 22-2239 to 22-2244 inclusive, 22-2247, 22-2248, 22-2250
                                     to 22-2253 inclusive, 22-2255 to 22-2377 inclusive and 22-2379 to
                                     22-2424 inclusive.
                                   B – Used on PA-22 with serial numbers 22-2378, 22-2425 to 22-3217
                                     inclusive and 22-3219 to 22-3386 inclusive.
                                   C – Not used on PA-22-108.
                                   D – Used on airplanes with serial numbers 22-8270, 22-8289, 22-8291,
                                     22-8293, 22-8298, 22-8304, 22-8305, 22-8307, 22-8318, 22-8334,
                                     22-8455, 22-8457 and up.
                                   E – Used on airplanes with serial numbers 22-1 to 22-8269 inclusive,
                                     22-8271 to 22-8288 inclusive, 22-8290, 22-8292, 22-8294 to 22-8297
                                     inclusive, 22-8299 to 22-8303 inclusive, 22-8306, 22-8308 to 22-8317
                                     inclusive, 22-8319 to 22-8333 inclusive, 22-8335 to 22-8454 inclusive,
                                     22-8456.
















                                                             196
