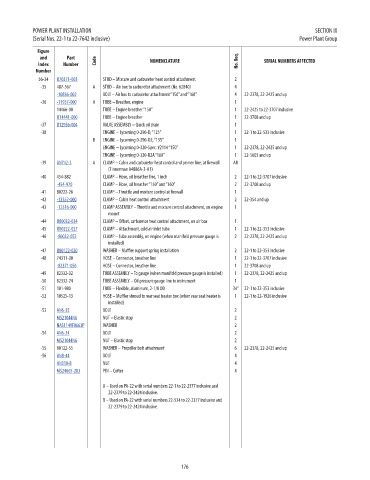

Page 188 - Piper PA-22 Tri-Pacer Interactive Digital Parts Catalog

POWER PLANT INSTALLATION SECTION IX
(Serial Nos. 22-1 to 22-7642 inclusive) Power Plant Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
56-34 U70371-003 STUD – Mixture and carburetor heat control attachment 2 26.41
-35 487-567 A STUD – Air box to carburetor attachment (No. 62840) 4 NM!
-10836-002 BOLT – Air box to carburetor attachment “150” and “160” 4 22-2378, 22-2425 and up 1.84
-36 -11957-000 A TUBE – Breather, engine 1 38.48
14466-00 TUBE – Engine breather “150” 1 22-2425 to 22-3707 inclusive NM!
U14441-000 TUBE – Engine breather 1 22-3708 and up 196.52
-37 U12956-004 VALVE ASSEMBLY – Quick oil drain 1 204.68
-38 ENGINE – Lycoming 0-290-D, “125” 1 22-1 to 22-533 inclusive X
B ENGINE – Lycoming 0-290-D2, “135” 1 X
ENGINE – Lycoming 0-320-Spec. #2114 “150” 1 22-2378, 22-2425 and up X
ENGINE – Lycoming 0-320-B2A “160” 1 22-5603 and up X
-39 AN742-3 A CLAMP – Cabin and carburetor heat control and primer line, at firewall AR 0.72
(Tinnerman A4886A-3-A1)
-40 454-882 CLAMP – Hose, oil breather line, 1 inch 2 22-1 to 22-3707 inclusive NM!
-454-970 CLAMP – Hose, oil breather “150” and “160” 2 22-3708 and up 2.56
-41 80222-26 CLAMP – Throttle and mixture control at firewall 1 NM!
-42 -13357-000 CLAMP – Cabin heat control attachment 2 22-354 and up 28.19
-43 -12316-000 CLAMP ASSEMBLY – Throttle and mixture control attachment, on engine 1 122.9
mount
-44 U80032-034 CLAMP – Offset, carburetor heat control attachment, on air box 1 25.91
-45 U80222-027 CLAMP – Attachment, cold air inlet tube 1 22-1 to 22-353 inclusive 42.69
-46 -80032-053 CLAMP – Tube assembly, on engine (when manifold pressure gauge is 2 22-2378, 22-2425 and up 16.93
installed)
-47 U80122-020 WASHER – Muffler support spring installation 2 22-1 to 22-353 inclusive 6.71
-48 74311-00 HOSE – Connector, breather line 1 22-1 to 22-3707 inclusive NM!
-82371-056 HOSE – Connector, breather line 1 22-3708 and up 30.49
-49 82332-32 TUBE ASSEMBLY – To gauge (when manifold pressure gauge is installed) 1 22-2378, 22-2425 and up NM!
-50 82332-24 TUBE ASSEMBLY – Oil pressure gauge line to instrument 1 NM!
-51 101-980 TUBE – Flexible, aluminum, 2-1/8 OD 34” 22-1 to 22-353 inclusive NM!
-52 10525-13 HOSE – Muffler shroud to rear seat heater box (when rear seat heater is 1 22-1 to 22-1926 inclusive NM!
installed)
-53 AN6-35 BOLT 2 2
MS21044N6 NUT – Elastic stop 2 0.58
NAS1149F0663P WASHER 2 0.11
-54 AN6-24 BOLT 2 1.36
MS21044N6 NUT – Elastic stop 2 0.58
-55 80122-55 WASHER – Propeller bolt attachment 6 22-2378, 22-2425 and up NM!
-56 AN8-44 BOLT 4 8.6
AN310-8 NUT 4 3.9
MS24665-283 PIN – Cotter 4 0.04

A – Used on PA-22 with serial numbers 22-1 to 22-2377 inclusive and
22-2379 to 22-2424 inclusive.
B – Used on PA-22 with serial numbers 22-534 to 22-2377 inclusive and
22-2379 to 22-2424 inclusive.

176
