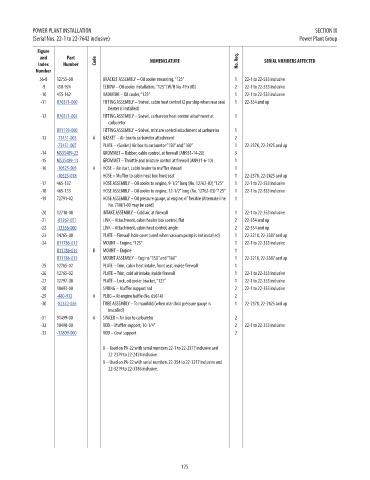

POWER PLANT INSTALLATION SECTION IX
(Serial Nos. 22-1 to 22-7642 inclusive) Power Plant Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
56-8 12755-00 BRACKET ASSEMBLY – Oil cooler mounting, “125” 1 22-1 to 22-533 inclusive NM!
-9 458-924 ELBOW – Oil cooler installation, “125” (W/H No. 49 x 6B) 2 22-1 to 22-533 inclusive NM!
-10 455-162 RADIATOR – Oil cooler, “125” 1 22-1 to 22-533 inclusive NM!
-11 U70371-000 FITTING ASSEMBLY – Swivel, cabin heat control (2 per ship when rear seat 1 22-354 and up 56.83
heater is installed)
-12 U70371-002 FITTING ASSEMBLY – Swivel, carburetor heat control attachment at 1 15.11
carburetor
U91193-000 FITTING ASSEMBLY – Swivel, mixture control attachment at carburetor 1 20.67
-13 -73451-003 A GASKET – Air box to carburetor attachment 2 9.99
-73451-007 PLATE – (Gasket) Air box to carburetor “150” and “160” 1 22-2378, 22-2425 and up 9.75
-14 MS35489-22 GROMMET – Rubber, cable control, at firewall (AN931-14-20) 3 2.34
-15 MS35489-11 GROMMET – Throttle and mixture control at firewall (AN931-6-10) 1 0.6
-16 -10525-005 A HOSE – Air duct, cabin heater to muffler shroud 1 33.34
-10525-018 HOSE – Muffler to cabin heat box front seat 1 22-2378, 22-2425 and up 38.15
-17 465-132 HOSE ASSEMBLY – Oil cooler to engine, 9-1/2” long (No. 12762-02) “125” 1 22-1 to 22-533 inclusive NM!
-18 465-133 HOSE ASSEMBLY – Oil cooler to engine, 12-1/2” long (No. 12762-03) “125” 1 22-1 to 22-533 inclusive NM!
-19 72791-02 HOSE ASSEMBLY – Oil pressure gauge, at engine, 6” flexible (Alternate line 1 NM!
No. 71061-00 may be used)
-20 12718-08 INTAKE ASSEMBLY – Cold air, at firewall 1 22-1 to 22-353 inclusive NM!
-21 -81262-051 LINK – Attachment, cabin heater box control, flat 2 22-354 and up 31.04
-22 -13356-000 LINK – Attachment, cabin heat control, angle 2 22-354 and up 30.08
-23 14765-00 PLATE – Firewall hole cover (used when vacuum pump is not installed) 1 22-3218, 22-3387 and up NM!
-24 U11786-012 MOUNT – Engine, “125” 1 22-1 to 22-353 inclusive 1655.25
U11786-014 B MOUNT – Engine 1 1741.49
U11786-015 MOUNT ASSEMBLY – Engine “150” and “160” 1 22-3218, 22-3387 and up 1957.35
-25 12765-02 PLATE – Trim, cabin heat intake, front seat, inside firewall 1 NM!
-26 12765-02 PLATE – Trim, cold air intake, inside firewall 1 22-1 to 22-353 inclusive NM!
-27 12797-00 PLATE – Lock, oil cooler bracket, “125” 1 22-1 to 22-353 inclusive NM!
-28 10493-00 SPRING – Muffler support rod 2 22-1 to 22-353 inclusive NM!
-29 -480-932 A PLUG – At engine baffle (No. 65614) 2 3.68
-30 -82332-026 TUBE ASSEMBLY – To manifold (when manifold pressure gauge is 1 22-2378, 22-2425 and up 80.85
installed)
-31 91499-00 A SPACER – Air box to carburetor 2 NM!
-32 10490-00 ROD – Muffler support, 10-1/4” 2 22-1 to 22-353 inclusive NM!
-33 -12809-000 ROD – Cowl support 2 123.71

A – Used on PA-22 with serial numbers 22-1 to 22-2377 inclusive and
22-2379 to 22-2424 inclusive.
B – Used on PA-22 with serial numbers 22-354 to 22-3217 inclusive and
22-3219 to 22-3386 inclusive.

175
