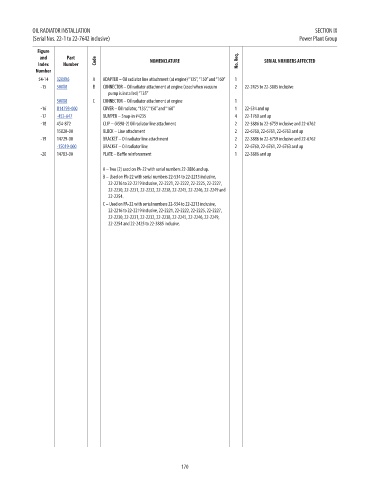

Page 182 - Piper PA-22 Tri-Pacer Interactive Digital Parts Catalog

OIL RADIATOR INSTALLATION SECTION IX
(Serial Nos. 22-1 to 22-7642 inclusive) Power Plant Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
54-14 3200X6 A ADAPTER – Oil radiator line attachment (at engine) “135”, “150” and “160” 1 4.58
-15 500X8 B CONNECTOR – Oil radiator attachment at engine (used when vacuum 2 22-2425 to 22-3885 inclusive 7.61
pump is installed) “135”
500X8 C CONNECTOR – Oil radiator attachment at engine 1 7.61
-16 U14793-000 COVER – Oil radiator, “135”, “150” and “160” 1 22-534 and up 116.55
-17 -453-647 BUMPER – Snap-in #4235 4 22-1760 and up 3.46
-18 454-872 CLIP – (#598-2) Oil radiator line attachment 2 22-3886 to 22-6759 inclusive and 22-6762 NM!
15020-00 BLOCK – Line attachment 2 22-6760, 22-6761, 22-6763 and up NM!
-19 14729-00 BRACKET – Oil radiator line attachment 2 22-3886 to 22-6759 inclusive and 22-6762 NM!
-15019-000 BRACKET – Oil radiator line 2 22-6760, 22-6761, 22-6763 and up 44.36
-20 14783-00 PLATE – Baffle reinforcement 1 22-3886 and up NM!

A – Two (2) used on PA-22 with serial numbers 22-3886 and up.
B – Used on PA-22 with serial numbers 22-534 to 22-2213 inclusive,
22-2216 to 22-2219 inclusive, 22-2221, 22-2222, 22-2225, 22-2227,
22-2230, 22-2231, 22-2232, 22-2238, 22-2245, 22-2246, 22-2249 and
22-2254.
C – Used on PA-22 with serial numbers 22-534 to 22-2213 inclusive,
22-2216 to 22-2219 inclusive, 22-2221, 22-2222, 22-2225, 22-2227,
22-2230, 22-2231, 22-2232, 22-2238, 22-2245, 22-2246, 22-2249,
22-2254 and 22-2425 to 22-3885 inclusive.

170
