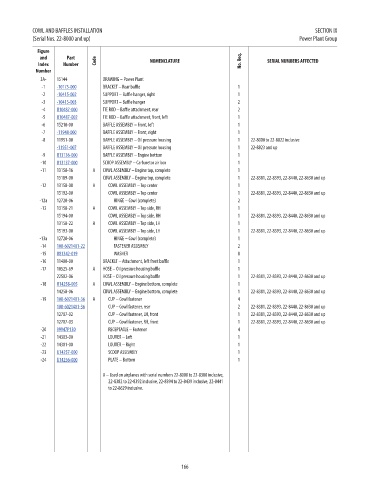

COWL AND BAFFLES INSTALLATION                                                                SECTION IX
            (Serial Nos. 22-8000 and up)                                                            Power Plant Group

             Figure
              and      Part
              Index   Number     Code              NOMENCLATURE                  No. Req.  SERIAL NUMBERS AFFECTED                PRICE
             Number
              3A-   15144          DRAWING – Power Plant                                                                          NM!
               -1   -10175-000     BRACKET – Rear baffle                        1                                                 66.13
               -2   -10415-002     SUPPORT – Baffle hanger, right               1                                                 34.26
               -3   -10415-003     SUPPORT – Baffle hanger                      2                                                 38.75
               -4   U10487-000     TIE ROD – Baffle attachment, rear            2                                                 19.55
               -5   U10487-002     TIE ROD – Baffle attachment, front, left     1                                                 50.8
               -6   15210-00       BAFFLE ASSEMBLY – Front, left                1                                                 NM!
               -7   -11948-000     BAFFLE ASSEMBLY – Front, right               1                                                 274.38
               -8   11951-00       BAFFLE ASSEMBLY – Oil pressure housing       1   22-8000 to 22-8822 inclusive                  NM!
                    -11951-007     BAFFLE ASSEMBLY – Oil pressure housing       1   22-8823 and up                                112.46
               -9   U13136-000     BAFFLE ASSEMBLY – Engine bottom              1                                                 222.47
              -10   U13137-000     SCOOP ASSEMBLY – Carburetor air box          1                                                 273.32
              -11   13158-16    A  COWL ASSEMBLY – Engine top, complete         1                                                 NM!
                    15189-00       COWL ASSEMBLY – Engine top, complete         1   22-8381, 22-8393, 22-8440, 22-8630 and up     NM!
              -12   13158-08    A    COWL ASSEMBLY – Top center                 1                                                 NM!
                    15192-00         COWL ASSEMBLY – Top center                 1   22-8381, 22-8393, 22-8440, 22-8630 and up     NM!
              -12a  12720-06           HINGE – Cowl (complete)                  2                                                 NM!
              -13   13158-21    A    COWL ASSEMBLY – Top side, RH               1                                                 NM!
                    15194-00         COWL ASSEMBLY – Top side, RH               1   22-8381, 22-8393, 22-8440, 22-8630 and up     NM!
                    13158-22    A    COWL ASSEMBLY – Top side, LH               1                                                 NM!
                    15193-00         COWL ASSEMBLY – Top side, LH               1   22-8381, 22-8393, 22-8440, 22-8630 and up     NM!
              -13a  12720-06           HINGE – Cowl (complete)                  1                                                 NM!
              -14   108-6021401-22      FASTENER ASSEMBLY                       2                                                 109.39
              -15   U81342-019         WASHER                                   8                                                 4.2
              -16   11400-00       BRACKET – Attachment, left front baffle      1                                                 NM!
              -17   10525-69    A  HOSE – Oil pressure housing baffle           1                                                 NM!
                    22502-06       HOSE – Oil pressure housing baffle           1   22-8381, 22-8393, 22-8440, 22-8630 and up     NM!
              -18   U14258-005  A  COWL ASSEMBLY – Engine bottom, complete      1                                                 3770.96
                    14258-06       COWL ASSEMBLY – Engine bottom, complete      1   22-8381, 22-8393, 22-8440, 22-8630 and up     NM!
              -19   108-6021401-36  A    CUP – Cowl fastener                    4                                                 32.83
                    108-6021401-36    CUP – Cowl fastener, rear                 2   22-8381, 22-8393, 22-8440, 22-8630 and up     32.83
                    12707-02         CUP – Cowl fastener, LH, front             1   22-8381, 22-8393, 22-8440, 22-8630 and up     NM!
                    12707-03         CUP – Cowl fastener, RH, front             1   22-8381, 22-8393, 22-8440, 22-8630 and up     NM!
              -20   99947P130        RECEPTACLE – Fastener                      4                                                 6.46
              -21   14303-00         LOUVER – Left                              1                                                 NM!
              -22   14301-00         LOUVER – Right                             1                                                 NM!
              -23   U14257-000       SCOOP ASSEMBLY                             1                                                 1771.02
              -24   U14256-000       PLATE – Bottom                             1                                                 26.29

                                   A – Used on airplanes with serial numbers 22-8000 to 22-8380 inclusive,
                                     22-8382 to 22-8392 inclusive, 22-8394 to 22-8439 inclusive, 22-8441
                                     to 22-8629 inclusive.
