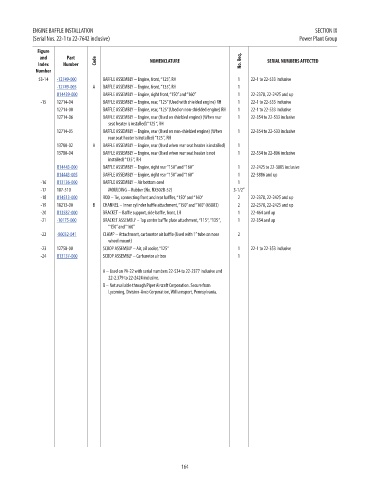

ENGINE BAFFLE INSTALLATION SECTION IX
(Serial Nos. 22-1 to 22-7642 inclusive) Power Plant Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
53-14 -12749-000 BAFFLE ASSEMBLY – Engine, front, “125”, RH 1 22-1 to 22-533 inclusive 231.57
-12749-005 A BAFFLE ASSEMBLY – Engine, front, “135”, RH 1 229.26
U14439-000 BAFFLE ASSEMBLY – Engine, right front, “150” and “160” 1 22-2378, 22-2425 and up 243.33
-15 12714-04 BAFFLE ASSEMBLY – Engine, rear, “125” (Used with shielded engine) RH 1 22-1 to 22-533 inclusive NM!
12714-00 BAFFLE ASSEMBLY – Engine, rear, “125” (Used on non-shielded engine) RH 1 22-1 to 22-533 inclusive NM!
12714-06 BAFFLE ASSEMBLY – Engine, rear (Used on shielded engine) (When rear 1 22-354 to 22-533 inclusive NM!
seat heater is installed) “125 “, RH
12714-05 BAFFLE ASSEMBLY – Engine, rear (Used on non-shielded engine) (When 1 22-354 to 22-533 inclusive NM!
rear seat heater is installed) “125 “, RH
13780-02 A BAFFLE ASSEMBLY – Engine, rear (Used when rear seat heater is installed) 1 NM!
13780-04 BAFFLE ASSEMBLY – Engine, rear (Used when rear seat heater is not 1 22-534 to 22-806 inclusive NM!
installed) “135 “, RH
U14443-000 BAFFLE ASSEMBLY – Engine, right rear “150” and “160” 1 22-2425 to 22-3885 inclusive 477.36
U14443-005 BAFFLE ASSEMBLY – Engine, right rear “150” and “160” 1 22-3886 and up 560.03
-16 U13136-000 BAFFLE ASSEMBLY – Air bottom cowl 1 222.47
-17 187-510 MOULDING – Rubber (No. NX502B-52) 3-1/2” NM!
-18 U14513-000 ROD – Tie, connecting front and rear baffles, “150” and “160” 2 22-2378, 22-2425 and up 49.98
-19 18213-00 B CHANNEL – Inner cylinder baffle attachment, “150” and “160” (65883) 2 22-2378, 22-2425 and up NM!
-20 U13587-000 BRACKET – Baffle support, side baffle, front, LH 1 22-464 and up 67.03
-21 -10175-000 BRACKET ASSEMBLY – Top center baffle plate attachment, “115 “, “135 “, 1 22-354 and up 66.13
“150” and “160”
-22 -80032-041 CLAMP – Attachment, carburetor air baffle (Used with 1” tube on nose 2 15.62
wheel mount)
-23 12758-00 SCOOP ASSEMBLY – Air, oil cooler, “125” 1 22-1 to 22-353 inclusive NM!
-24 U13137-000 SCOOP ASSEMBLY – Carburetor air box 1 273.32

A – Used on PA-22 with serial numbers 22-534 to 22-2377 inclusive and
22-2.379 to 22-2424 inclusive.
B – Not available through Piper Aircraft Corporation. Secure from
Lycoming, Division-Avco Corporation, Williamsport, Pennsylvania.

164
