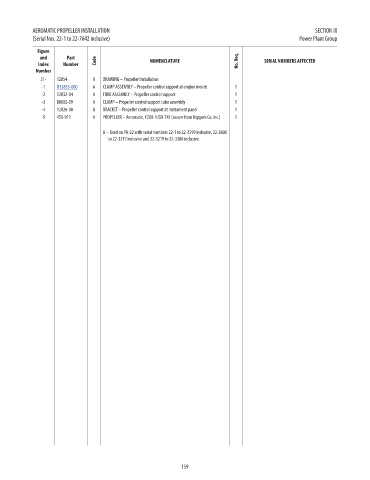

AEROMATIC PROPELLER INSTALLATION SECTION IX
(Serial Nos. 22-1 to 22-7642 inclusive) Power Plant Group
Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
51- 12854 A DRAWING – Propeller Installation NM!
-1 U12833-000 A CLAMP ASSEMBLY – Propeller control support at engine mount 1 39.58
-2 12832-04 A TUBE ASSEMBLY – Propeller control support 1 NM!
-3 80002-09 A CLAMP – Propeller control support tube assembly 1 NM!
-4 12826-00 A BRACKET – Propeller control support at instrument panel 1 NM!
-5 450-911 A PROPELLER – Aeromatic, F200-H/00-74E (secure from Koppers Co. Inc.) 1 NM!
A – Used on PA-22 with serial numbers 22-1 to 22-2599 inclusive, 22-2600
to 22-3217 inclusive and 22-3219 to 22-3386 inclusive.
159
