P. 167

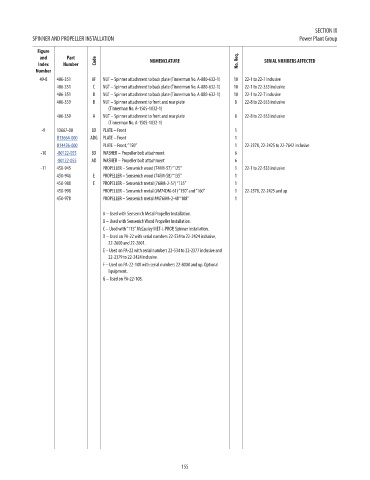

SECTION IX
            SPINNER AND PROPELLER INSTALLATION                                                      Power Plant Group

             Figure
              and      Part
              Index   Number     Code              NOMENCLATURE                 No. Req.  SERIAL NUMBERS AFFECTED                 PRICE
             Number
              49-8  406-351    AF   NUT – Spinner attachment to back plate (Tinnerman No. A-880-632-1)  10  22-1 to 22-7 inclusive  NM!
                    406-351     C  NUT – Spinner attachment to back plate (Tinnerman No. A-880-632-1)  10  22-1 to 22-353 inclusive  NM!
                    406-351     B  NUT – Spinner attachment to back plate (Tinnerman No. A-880-632-1)  10  22-1 to 22-7 inclusive  NM!
                    406-359     B   NUT – Spinner attachment to front and rear plate    8  22-8 to 22-553 inclusive               NM!
                                     (Tinnerman No. A-1505-1032-1)
                    406-359     A   NUT – Spinner attachment to front and rear plate    8  22-8 to 22-553 inclusive               NM!
                                     (Tinnerman No. A-1505-1032-1)
               -9   13667-00   BD   PLATE – Front                              1                                                  NM!
                    U13664-000  ADG  PLATE – Front                             1                                                  170.2
                    U14426-000     PLATE – Front, “150”                        1  22-2378, 22-2425 to 22-7642 inclusive           189.44
              -10   -80122-055  BD   WASHER – Propeller bolt attachment        6                                                  5.37
                    -80122-055  AD   WASHER – Propeller bolt attachment        6                                                  5.37
              -11   450-945        PROPELLER – Sensenich wood (74FM-57) “125”  1  22-1 to 22-533 inclusive                        NM!
                    450-946     E   PROPELLER – Sensenich wood (74FM-58) “135”  1                                                 NM!
                    450-988     E   PROPELLER – Sensenich metal (76AM-2-57) “135”  1                                              NM!
                    450-998        PROPELLER – Sensenich metal (#M74DM-61) “150” and “160”  1  22-2378, 22-2425 and up            NM!
                    450-978        PROPELLER – Sensenich metal #M76AM-2-48 “108”  1                                               NM!

                                   A – Used with Sensenich Metal Propeller Installation.
                                   B – Used with Sensenich Wood Propeller Installation.
                                   C – Used with “115” McCauley MET-L-PROP, Spinner Installation.
                                   D – Used on PA-22 with serial numbers 22-534 to 22-2424 inclusive,
                                     22-2600 and 22-2601.
                                   E – Used on PA-22 with serial numbers 22-534 to 22-2377 inclusive and
                                     22-2379 to 22-2424 inclusive.
                                   F – Used on PA-22-108 with serial numbers 22-8000 and up. Optional
                                     Equipment.
                                   G – Used on PA-22-108.





































                                                             155
