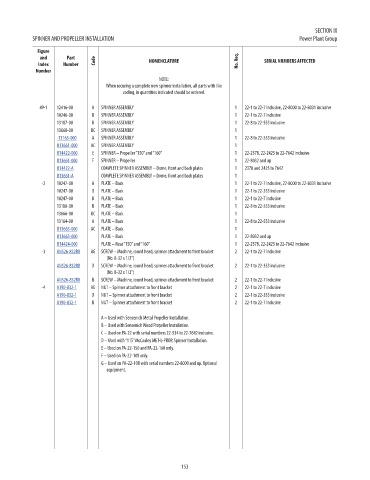

Page 165 - Piper PA-22 Tri-Pacer Interactive Digital Parts Catalog

SECTION IX
SPINNER AND PROPELLER INSTALLATION Power Plant Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
NOTE:
When securing a complete new spinner installation, all parts with like
coding, in quantities indicated should be ordered.

49-1 12416-00 A SPINNER ASSEMBLY 1 22-1 to 22-7 inclusive, 22-8000 to 22-8031 inclusive NM!
10246-00 B SPINNER ASSEMBLY 1 22-1 to 22-7 inclusive NM!
13187-00 B SPINNER ASSEMBLY 1 22-8 to 22-553 inclusive NM!
13668-00 BC SPINNER ASSEMBLY 1 NM!
-13163-000 A SPINNER ASSEMBLY 1 22-8 to 22-553 inclusive 421.37
U13661-000 AC SPINNER ASSEMBLY 1 397.37
U14422-000 E SPINNER – Propeller “150” and “160” 1 22-2378, 22-2425 to 22-7642 inclusive 516.26
U13661-000 F SPINNER – Propeller 1 22-8032 and up 397.37
U14422-A COMPLETE SPINNER ASSEMBLY – Dome, front and back plates 1 2378 and 2425 to 7642 765.59
U13661-A COMPLETE SPINNER ASSEMBLY – Dome, front and back plates 1 676.82
-2 10247-00 A PLATE – Back 1 22-1 to 22-7 inclusive, 22-8000 to 22-8031 inclusive NM!
10247-00 D PLATE – Back 1 22-1 to 22-353 inclusive NM!
10247-00 B PLATE – Back 1 22-1 to 22-7 inclusive NM!
13188-00 B PLATE – Back 1 22-8 to 22-553 inclusive NM!
13666-00 BC PLATE – Back 1 NM!
13164-00 A PLATE – Back 1 22-8 to 22-553 inclusive NM!
U13663-000 AC PLATE – Back 1 183.48
U13663-000 PLATE – Back 1 22-8032 and up 183.48
U14424-000 PLATE – Rear “150” and “160” 1 22-2378, 22-2425 to 22-7642 inclusive 247
-3 AN526-832R8 AG SCREW – Machine, round head, spinner attachment to front bracket 2 22-1 to 22-7 inclusive 0.04
(No. 8-32 x 1/2”)
AN526-832R8 D SCREW – Machine, round head, spinner attachment to front bracket 2 22-1 to 22-353 inclusive 0.04
(No. 8-32 x 1/2”)
AN526-832R8 B SCREW – Machine, round head, spinner attachment to front bracket 2 22-1 to 22-7 inclusive 0.04
-4 A190-832-1 AG NUT – Spinner attachment to front bracket 2 22-1 to 22-7 inclusive 0.7
A190-832-1 D NUT – Spinner attachment to front bracket 2 22-1 to 22-353 inclusive 0.7
A190-832-1 B NUT – Spinner attachment to front bracket 2 22-1 to 22-7 inclusive 0.7

A – Used with Sensenich Metal Propeller Installation.
B – Used with Sensenich Wood Propeller Installation.
C – Used on PA-22 with serial numbers 22-534 to 22-7642 inclusive.
D – Used with “115” McCauley MET-L-PROP, Spinner Installation.
E – Used on PA-22-150 and PA-22-160 only.
F – Used on PA-22-108 only.
G – Used on PA-22-108 with serial numbers 22-8000 and up. Optional
equipment.

153
