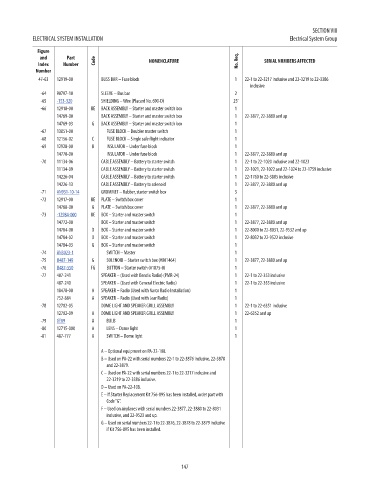

Page 159 - Piper PA-22 Tri-Pacer Interactive Digital Parts Catalog

SECTION VIII
ELECTRICAL SYSTEM INSTALLATION Electrical System Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
47-63 12919-00 BUSS BAR – Fuse block 1 22-1 to 22-3217 inclusive and 22-3219 to 22-3386 NM!
inclusive
-64 90797-10 SLEEVE – Bus bar 2 NM!
-65 -153-320 SHIELDING – Wire (Placard No. 690-D) 25’ 1.62
-66 12918-00 BE BACK ASSEMBLY – Starter and master switch box 1 NM!
14769-00 BACK ASSEMBLY – Starter and master switch box 1 22-3877, 22-3880 and up NM!
14769-03 G BACK ASSEMBLY – Starter and master switch box 1 NM!
-67 13051-00 FUSE BLOCK – Doubler master switch 1 NM!
-68 12156-02 C FUSE BLOCK – Single safe flight indicator 1 NM!
-69 12928-00 B INSULATOR – Under fuse block 1 NM!
14770-00 INSULATOR – Under fuse block 1 22-3877, 22-3880 and up NM!
-70 11134-06 CABLE ASSEMBLY – Battery to starter switch 1 22-1 to 22-1020 inclusive and 22-1023 NM!
11134-09 CABLE ASSEMBLY – Battery to starter switch 1 22-1021, 22-1022 and 22-1024 to 22-1759 inclusive NM!
14226-04 CABLE ASSEMBLY – Battery to starter switch 1 22-1760 to 22-3885 inclusive NM!
14226-13 CABLE ASSEMBLY – Battery to solenoid 1 22-3877, 22-3880 and up NM!
-71 AN931-10-14 GROMMET – Rubber, starter switch box 3 2
-72 12917-00 BE PLATE – Switch box cover 1 NM!
14768-00 G PLATE – Switch box cover 1 22-3877, 22-3880 and up NM!
-73 -12984-000 BE BOX – Starter and master switch 1 36.12
14772-00 BOX – Starter and master switch 1 22-3877, 22-3880 and up NM!
14784-00 D BOX – Starter and master switch 1 22-8000 to 22-8031, 22-9532 and up NM!
14784-02 D BOX – Starter and master switch 1 22-8032 to 22-9522 inclusive NM!
14784-03 G BOX – Starter and master switch 1 NM!
-74 AN3023-1 SWITCH – Master 1 400
-75 U487-149 G SOLENOID – Starter switch box (#001464) 1 22-3877, 22-3880 and up 107.33
-76 U487-550 FG BUTTON – Starter switch (#1875-0) 1 65.84
-77 487-241 SPEAKER – (Used with Bendix Radio) (PMR-24) 1 22-1 to 22-353 inclusive NM!
487-240 SPEAKER – (Used with General Electric Radio) 1 22-1 to 22-353 inclusive NM!
18478-00 A SPEAKER – Radio (Used with Narco Radio Installation) 1 NM!
752-884 A SPEAKER – Radio (Used with Lear Radio) 1 NM!
-78 12702-05 DOME LIGHT AND SPEAKER GRILL ASSEMBLY 1 22-1 to 22-6351 inclusive NM!
12702-09 A DOME LIGHT AND SPEAKER GRILL ASSEMBLY 1 22-6352 and up NM!
-79 GE89 A BULB 1 2.42
-80 12715-000 A LENS – Dome light 1 NM!
-81 487-777 A SWITCH – Dome light 1 NM!

A – Optional equipment on PA-22-108.
B – Used on PA-22 with serial numbers 22-1 to 22-3876 inclusive, 22-3878
and 22-3879.
C – Used on PA-22 with serial numbers 22-1 to 22-3217 inclusive and
22-3219 to 22-3386 inclusive.
D – Used on PA-22-108.
E – If Starter Replacement Kit 756-895 has been installed, order part with
Code “G”.
F – Used on airplanes with serial numbers 22-3877, 22-3880 to 22-8031
inclusive, and 22-9523 and up.
G – Used on serial numbers 22-1 to 22-3876, 22-3878 to 22-3879 inclusive
if Kit 756-895 has been installed.

147
